The DRV101T from Texas Instruments is a high-performance, single-channel, PWM (Pulse Width Modulation) solenoid and valve driver. Designed for robustness and precision, this integrated circuit is capable of delivering efficient power control to a wide range of inductive loads. Its versatile nature makes it suitable for applications in industrial, automotive, and consumer products.

Key Features:

• Adjustable PWM: The DRV101T allows users to adjust the duty cycle from 0% to 100%, providing precise control over the power delivered to the load.
• High Output Drive: With an output drive capability of up to 2.3A, this driver can handle a variety of solenoids and valves, ensuring reliable operation even under demanding conditions.
• Wide Supply Range: The device operates from a supply voltage range of 9V to 60V, accommodating a broad spectrum of power requirements.
• Integrated Protection Features: The DRV101T includes over-current protection, thermal shutdown, and under-voltage lockout to safeguard the device and the load from potential damage.
• Flexible Control: The PWM input can be controlled via an external signal, offering flexibility in integrating the DRV101T into various control systems.

Applications:

• Industrial automation
• Process control valves
• Pneumatic actuators
• Automotive systems
• Medical equipment

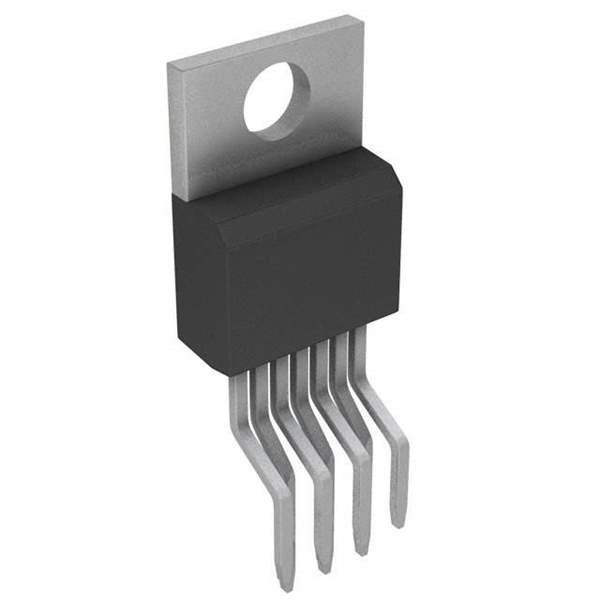

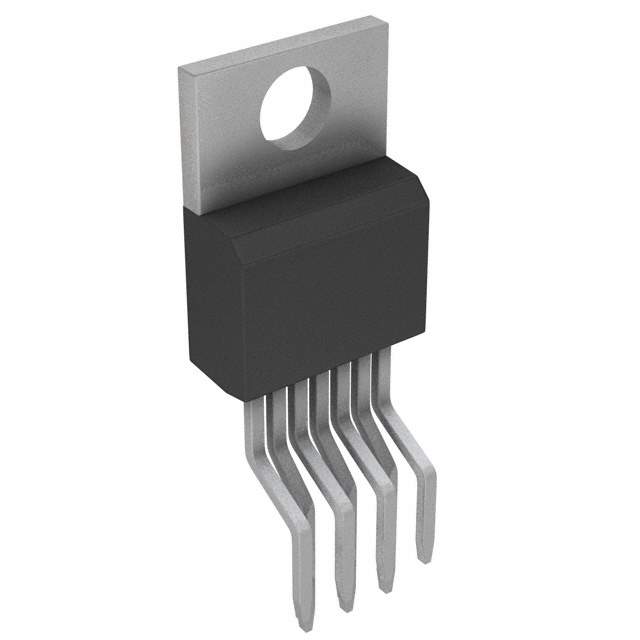

The DRV101T is housed in a TO-220 package, which is known for its excellent power dissipation capabilities. This, combined with its built-in thermal protection, ensures that the device can perform reliably even in environments where heat is a concern. Whether you are developing sophisticated industrial machinery or designing a custom automation solution, the DRV101T offers a versatile and reliable choice for controlling solenoids and valves with precision and efficiency.

For more detailed information, including datasheets, reference designs, and ordering options, please visit the official Texas Instruments website or contact your local TI sales representative.
