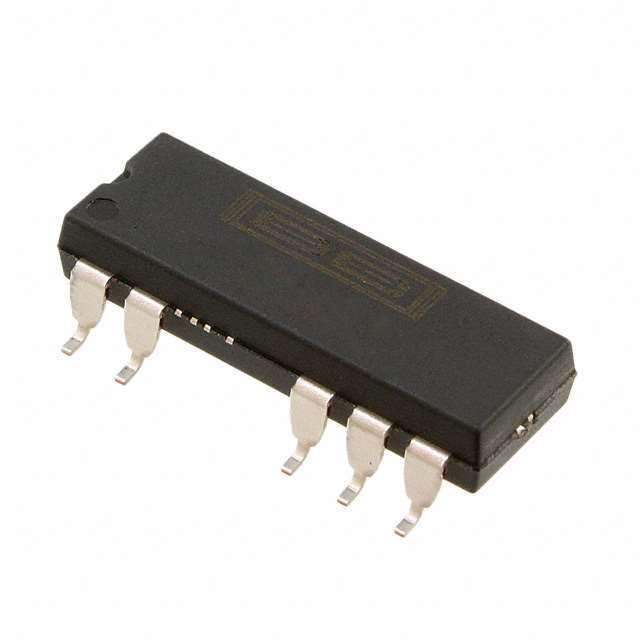

DCP010512BP-U

Part No DCP010512BP-U
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description IC REG ISOLATED 12V 83MA 7SOP
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series DCP01B
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 12V
Current - Output (Max) 83mA
Power (Watts) - Manufacture Series 1W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Features OTP, SCP
Mounting Style SMD/SMT
Package 14-SMD Module (7 Leads), Gull Wing
Size / Dimension 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm)
Operating Temperature Range -40°C ~ 100°C
Efficiency 85%
Power (Watts) - Max 348mW
Win Source Part Number 013848-DCP010512BP-U
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Signal Processing, Automation & Process Control, Sensing & Instrumentation, Test & Measurement, Industrial
Ultra Librarian 3D Model Ultra Librarian DCP010512BP-U CAD Model

Description

Product Overview

The DCP010512BP-U version extends the capabilities of its counterpart by providing apt solutions for dynamic environments where adaptability and precision in voltage delivery become paramount.

Features and Benefits

  • Output precision and high stability
  • Inherent adaptability for dynamic conditions
  • Extended input voltage range
  • Advanced protective features against voltage surges

Applications and Projects

  • Renewable energy applications
  • Dynamic load management systems
  • Advanced power distribution networks
  • High-reliability computing processes
  • Aerospace electronic systems

Focusing on adaptability and precise output control, it significantly enhances the power management strategies for sophisticated applications.
