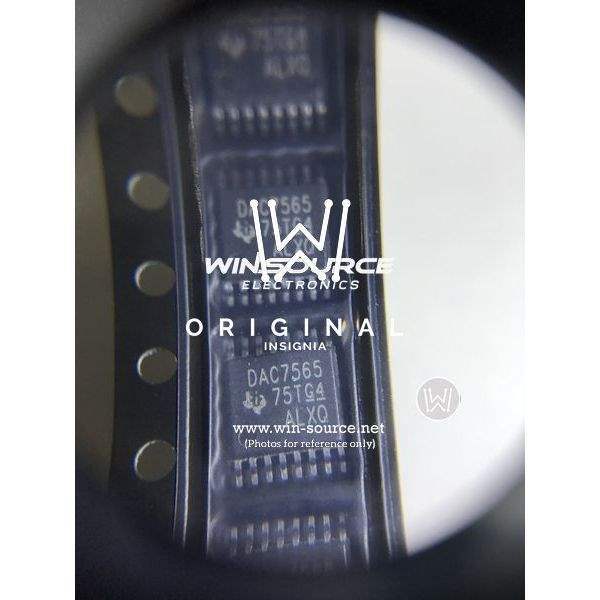

DAC7565IAPWR Texas Instruments DAC7565IAPWR Real Image DAC7565IAPWR real image DAC7565IAPWR real image 2 DAC7565IAPWR real image 3
Same model may have multiple batches, images only for reference.
DAC7565IAPWR Texas Instruments DAC7565IAPWR Real Image DAC7565IAPWR real image DAC7565IAPWR real image 2 DAC7565IAPWR real image 3
DAC7565IAPWR Texas Instruments DAC7565IAPWR Real Image DAC7565IAPWR real image DAC7565IAPWR real image 2 DAC7565IAPWR real image 3
Same model may have multiple batches, images only for reference.

DAC7565IAPWR

Part No DAC7565IAPWR
Manufacturer Texas Instruments
Catalog Data Acquisition - Digital to Analog Converters (DAC)
Description IC DAC 12BIT SER 16-TSSOP
Datasheet
DAC7565IAPWR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Number of Bits 12
Number of D/A Converters 4
Settling Time 10μs
Output Type Voltage - Buffered
Differential Output No
Data Interface SPI, DSP
Reference Type External, Internal
Analog Supply Voltage 2.7 V to 5.5 V
Digital Supply Voltage 2.7 V to 5.5 V
INL/DNL (LSB) ±0.5, ±0.1
Temperature Range - Operating -40°C to 105°C
Case / Package 16-TSSOP
Win Source Part Number 013653-DAC7565IAPWR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian DAC7565IAPWR CAD Model

Description

Overview

The DAC7565IAPWR is a precision 12-bit digital-to-analog converter (DAC) designed for optimal performance in a compact package. This DAC is ideal for applications requiring precise voltage outputs and low power consumption.

Features and Benefits

  • 12-Bit Resolution: Ensures accurate digital-to-analog conversion with fine granularity.
  • Low Power Consumption: Ideal for battery-powered and portable devices.
  • High Accuracy: Delivers precise voltage outputs for demanding applications.
  • Compact Package: Suitable for space-constrained projects.
  • Wide Operating Temperature Range: Suitable for various environmental conditions.

Applications

  • Portable Medical Devices
  • Industrial Process Control
  • Communication Equipment
  • Automotive Electronics
  • Test and Measurement Systems
