The CSD13202Q2 is a state-of-the-art N-Channel NexFET™ power MOSFET designed and manufactured by Texas Instruments. This high-performance MOSFET is a testament to Texas Instruments' commitment to providing innovative solutions for power management challenges across a wide range of applications.

Key Features

• Low On-Resistance: The CSD13202Q2 boasts an ultra-low on-resistance (R<sub>DS(on)) of 8.7 mΩ at V<sub>GS = 4.5 V, which helps in achieving high efficiency in power conversion applications.

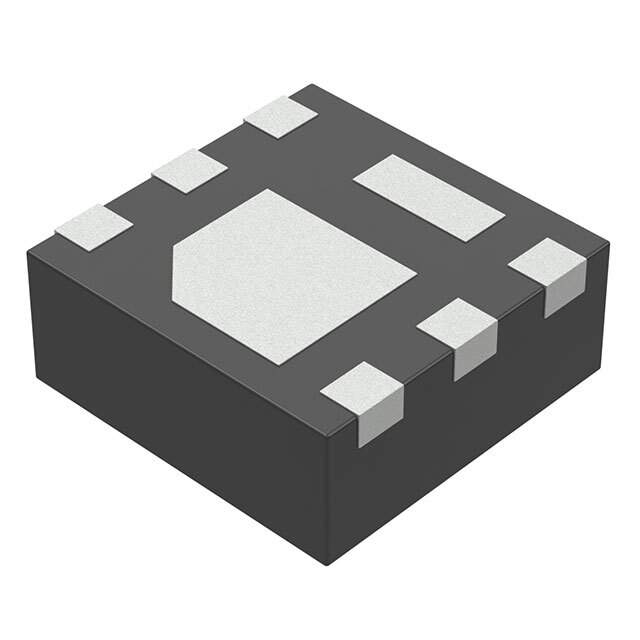

• Advanced Packaging: Packaged in a compact 2x2 mm SON package, the CSD13202Q2 is optimized for space-constrained applications, providing excellent power density.
• High Continuous Drain Current: It supports a high continuous drain current (I<sub>D) of 13.5 A, making it suitable for high-power applications.
• Thermal Management: The MOSFET is designed with excellent thermal characteristics, ensuring reliable performance even under high temperature operating conditions.

Applications

The CSD13202Q2 is ideal for a variety of applications, including:

• DC/DC Converters
• Power Supply Modules
• Battery Management Systems
• Load Switches
• Point of Load (POL) Solutions

Performance and Quality

With its robust performance and high-quality build, the CSD13202Q2 from Texas Instruments is designed to meet the rigorous demands of modern electronic circuits. Its low on-resistance and high current handling capabilities ensure minimal power loss and high efficiency, which is critical for battery-powered devices and energy-sensitive applications.

For designers looking for a reliable and efficient power MOSFET solution, the CSD13202Q2 presents itself as an excellent choice. Its compact footprint, combined with its high performance, makes it a go-to component for designing power management systems that require a balance of power density, efficiency, and thermal performance.

For more information, datasheets, and support resources, please visit the Texas Instruments product page.
