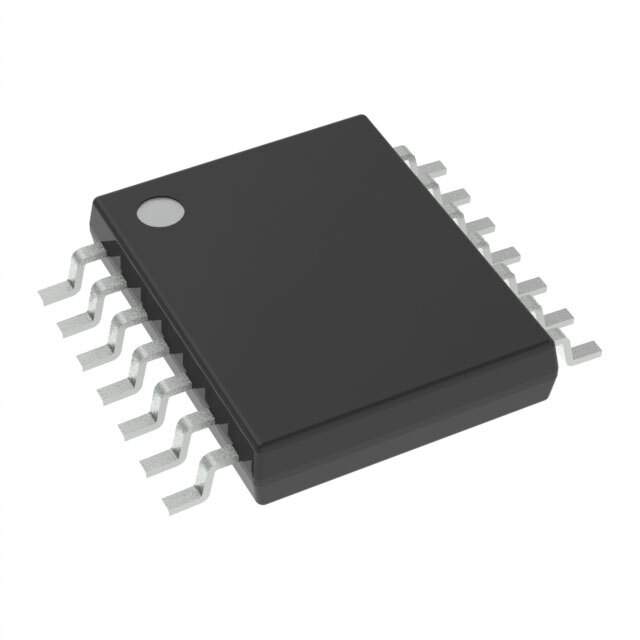

The Texas Instruments CDCLVC1106PW is a high-performance, low-voltage clock buffer designed to distribute high-speed signals with precision and reliability. This device is part of the CDCLVC family, which is known for its low voltage operation and low power consumption, making it an ideal choice for a wide range of applications, including telecommunications, computing, and industrial markets.
Key Features
- High-Speed Signal Distribution: The CDCLVC1106PW is capable of handling high-frequency clock signals, ensuring minimal skew and jitter, which is crucial for maintaining signal integrity in high-speed digital systems.
- Low-Voltage Operation: Operating at a low voltage range, this clock buffer is designed for systems that require energy efficiency without compromising performance, suitable for battery-powered and power-sensitive applications.
- Multiple Outputs: It features six outputs, which allows for multiple signal distributions from a single input, thereby reducing component count and simplifying design complexity.
- Wide Temperature Range: This device is operational over an industrial temperature range, ensuring reliability and performance even in harsh environmental conditions.
Applications
The CDCLVC1106PW is versatile and can be used in various applications such as:
- Data communication equipment
- Networking and telecommunication systems
- Server and storage platforms
- Industrial control and automation
Technical Specifications
| Parameter |
Value |
| Supply Voltage (VDD) |
2.5V to 3.3V |
| Operating Temperature Range |
-40°C to +85°C |
| Output Type |
LVCMOS |
| Package |
14-TSSOP |
Quality and Reliability
As with all Texas Instruments products, the CDCLVC1106PW is designed to meet the highest standards of quality and reliability. This device undergoes rigorous testing and validation to ensure it performs to specifications under varying conditions.
