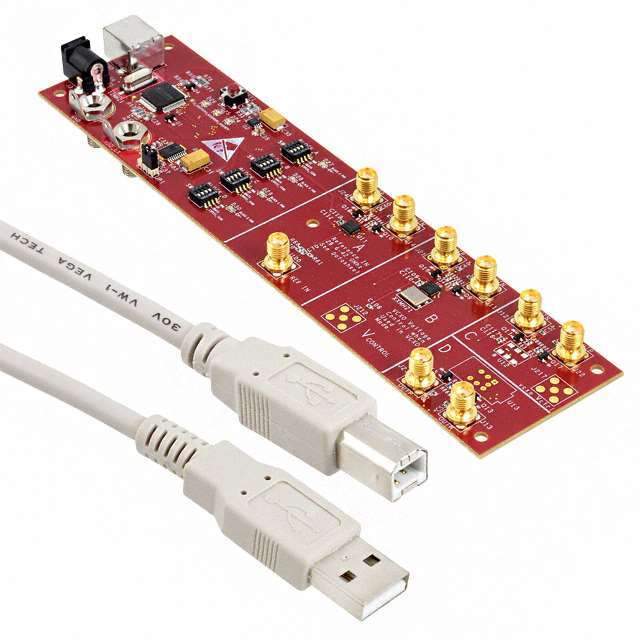

The CDCE421AEVM is an evaluation module designed by Texas Instruments to facilitate the testing and performance assessment of the CDCE421A, a high-performance clock generator. This module is essential for engineers and designers who require a reliable and precise clock source for their applications, particularly in the fields of telecommunications, computing, and high-speed data acquisition systems.

Key Features

• Flexible Clock Synthesis: The CDCE421AEVM provides a wide range of frequency configurations, allowing users to generate a variety of clock outputs for different applications.
• Programmable PLL: The on-board programmable PLL (Phase-Locked Loop) can be configured for various multiplication and division ratios, enabling precise clock management.
• High-Quality Signal Integrity: The module is designed to produce low-jitter clock signals, ensuring high-quality signal integrity for critical applications.
• Easy-to-Use Interface: The evaluation module includes an easy-to-use graphical user interface (GUI) for quick setup and configuration of the clock generator.
• Power Supply Flexibility: The CDCE421AEVM can be powered through a USB connection or an external power supply, providing versatility for different testing environments.

Technical Specifications

The evaluation module is built around the CDCE421A chip, which features a single PLL with non-volatile EEPROM memory to store configuration settings. The device supports an input frequency range from 8 MHz to 230 MHz and an output frequency range up to 230 MHz. It also offers programmable LVCMOS output levels to match different logic standards.

Applications

The CDCE421AEVM is suitable for a wide range of applications, including:

• Networking equipment such as routers, switches, and base stations
• High-speed data converters and acquisition systems
• Industrial and medical equipment requiring precise timing solutions
• Consumer electronics and computing devices

Support and Resources

Texas Instruments offers comprehensive support for the CDCE421AEVM, including detailed documentation, application notes, and software tools. Users can access a wealth of resources to facilitate the development process and maximize the potential of the CDCE421A clock generator.
