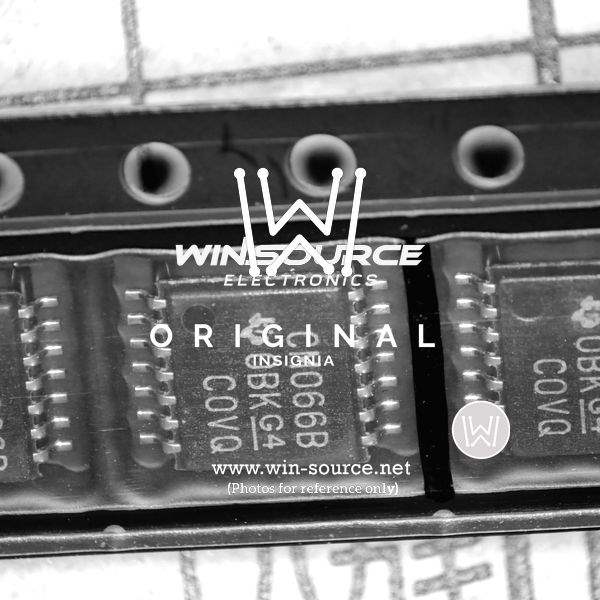

Product Overview: Texas Instruments CD4066BPW

The Texas Instruments CD4066BPW is a high-performance CMOS Quad Bilateral Switch integrated circuit, designed to handle both analog and digital signals. This versatile chip is encapsulated in a 14-Pin TSSOP (Thin Shrink Small Outline Package) that offers a compact footprint while ensuring reliable connectivity in a wide array of electronic applications.

Key Features

• Versatility: The CD4066BPW is capable of handling analog signals up to 20V peak-to-peak in amplitude, making it suitable for a diverse range of applications.
• Low ON Resistance: Characterized by low ON resistance, typically around 80 ohms at 10V and 25°C, the switches offer minimal signal distortion.
• Matched Switch Characteristics: Ensures that signal delay and frequency response are consistent across all four switches.
• Wide Operating Temperature Range: This device can operate over a broad temperature range from -55°C to 125°C, ensuring reliability in various environmental conditions.
• Low Power Consumption: The CD4066BPW benefits from CMOS technology, which ensures low power consumption.

Applications

The CD4066BPW is commonly used in a variety of applications, including but not limited to:

• Analog and digital multiplexing/demultiplexing
• Signal gating
• Modulation and demodulation circuits
• Communication circuits

Technical Specifications

• Supply Voltage Range: 3V to 18V
• Logic Level Compatibility: The switch can be driven by TTL, CMOS, and PMOS logic levels.
• Package: 14-Pin TSSOP
• RoHS Compliant: Yes

The CD4066BPW from Texas Instruments is a reliable choice for designers looking for a quad bilateral switch that can seamlessly integrate into both analog and digital systems. Its robust design and compatibility with various signal types make it an essential component for a wide range of electronic circuits.
