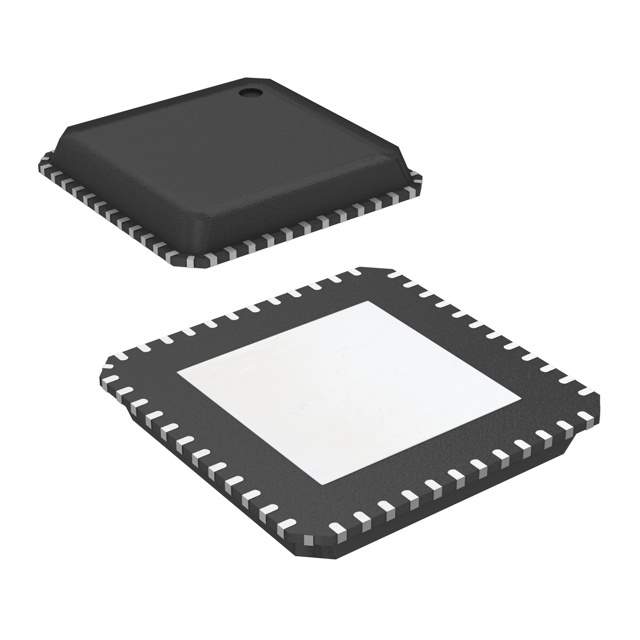

CC2420-RTR1 Real Image
Same model may have multiple batches, images only for reference.

CC2420-RTR1

Part No CC2420-RTR1
Manufacturer Texas Instruments
Catalog RF Transceiver ICs
Description IC RF TXRX 802.15.4 48-VFQFN
Datasheet
CC2420-RTR1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Texas Instruments
Packaging Reel - TR
Status Obsolete(EOL)
Type TxRx Only
RF Family/Standard 802.15.4
Protocol Zigbee
Modulation DSSS, O-QPSK
Frequency 2.4GHz
Data Rate (Max) 250kbps
Power - Output 0dBm
Sensitivity -95dBm
Serial Interfaces SPI
Supply Voltage - Operating 2.1 V to 3.6 V
Current - Receiving 18.8mA
Current - Transmitting 8.5mA to 17.4mA
Temperature Range - Operating -40°C to 85°C
Dimension 48-VFQFN Exposed Pad
Win Source Part Number 202303-CC2420-RTR1
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CC2420-RTR1 CAD Model

Description

Overview of CC2420-RTR1

The CC2420-RTR1 RF transceiver is engineered for precise wireless applications within the 2.4 GHz range, leveraging the IEEE 802.15.4 protocol to deliver exceptional ZigBee functionality. Known for its efficiency, this component empowers developers to devise complex wireless projects with ease.

Features and Benefits

  • Comprehensive 2.4 GHz operation with low current consumption.
  • Robust 802.15.4 protocol adherence for ZigBee projects.
  • Improved anti-interference mechanics ensuring top-tier communication.
  • Scalable for a range of technological applications.

Applications

  • Advanced IoT devices and networks.
  • Industrial automation and control units.
  • Wireless home security systems.
  • Mobile healthcare solutions.

The CC2420-RTR1 provides a forward-thinking approach to wireless transceiving, equipping designers with the performance and flexibility needed for cutting-edge solutions.
