The BQ27411DRZR-G1C is a sophisticated, single-cell Li-Ion battery fuel gauge integrated circuit from the renowned semiconductor manufacturer Texas Instruments. This compact, feature-rich component offers a comprehensive solution for power management and battery monitoring in portable devices. It is designed to provide accurate fuel gauging and battery health monitoring without requiring an external sense resistor or full system calibration.

Key Features

• System-Side Fuel Gauge: This device resides on the system side, which simplifies integration and allows for flexible placement within the system architecture.
• Impedance Track™ Technology: Texas Instruments' proprietary Impedance Track™ algorithm offers high-precision fuel gauging, capable of providing battery state-of-charge (SOC) readings with outstanding accuracy.
• Low Power Consumption: Designed for energy-sensitive applications, the BQ27411DRZR-G1C has an ultra-low quiescent current, making it ideal for portable electronics where battery life is critical.
• Easy Configuration: The device requires minimal user configuration and system microcontroller firmware development, which accelerates the product development cycle.
• Unsealed Configuration: The BQ27411DRZR-G1C allows access to the full set of configuration settings, enabling comprehensive customization for specific application requirements.

Applications

The BQ27411DRZR-G1C is versatile and can be employed in a wide array of applications. Its primary use is in portable electronics where accurate fuel gauging is essential. This includes smartphones, tablets, digital cameras, and other handheld devices. Additionally, it is suitable for health and fitness trackers, wireless speakers, and any other application that relies on a single-cell Li-Ion battery.

Technical Specifications

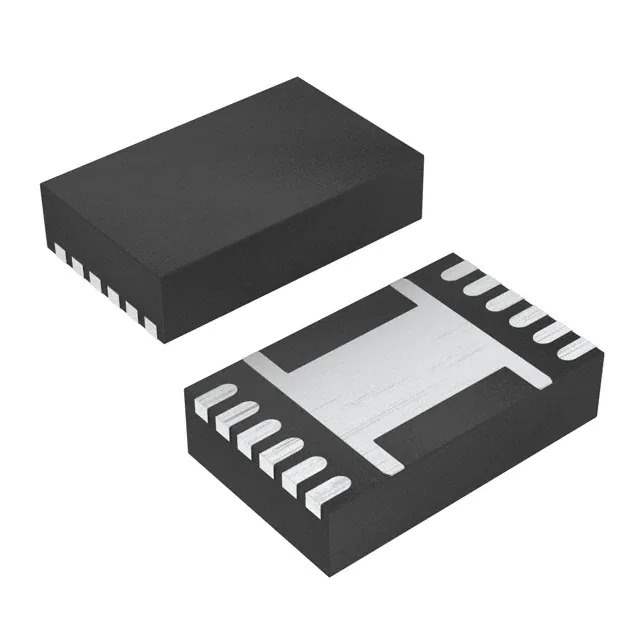

• Package: 12-pin SON (DRZR)
• Battery Chemistry: Li-Ion and Li-Polymer
• Communication Interface: I2C
• Operating Temperature Range: -40°C to +85°C

In conclusion, the BQ27411DRZR-G1C from Texas Instruments is an advanced, highly accurate fuel gauge IC that simplifies the design and extends the battery life of portable electronic devices. Its robust feature set and ease of use make it an excellent choice for designers looking to enhance their power management solutions.
