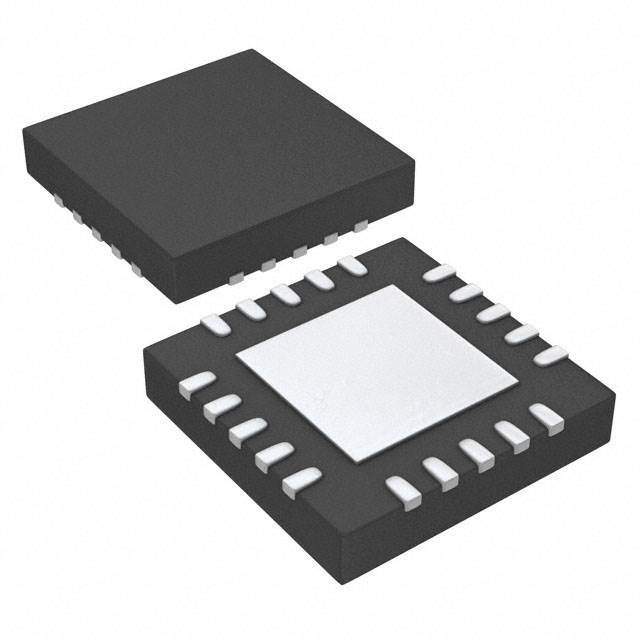

BQ24001RGWR

Part No BQ24001RGWR
Manufacturer Texas Instruments
Catalog PMIC - Battery Chargers
Description SINGLE-CELL LI-ION CHARGE MANAGEMENT ICFOR PDAS
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Texas Instruments
Packaging Reel - TR
Battery Chemistry Lithium-Ion
Number of Cells 1
Current - Charging Constant
Programmable Features Current, Timer
Fault Protection Over Temperature
Charge Current - Max 1.2A
Battery Pack Voltage 4.2V
Voltage Supply MAX 10V
Operating Temperature Range -40°C ~ 70°C (TA)
Package 20-VQFN Exposed Pad
Manufacturer Package 20-VQFN (5x5)
Win Source Part Number 1154096-BQ24001RGWR
Manufacturer Homepage www.ti.com
Popularity Medium
Supply and Demand Status Limited
Family Name bq24001
Introduction Date September 30, 2004
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian BQ24001RGWR CAD Model

Description

Introducing the BQ24001RGWR from Texas Instruments

The BQ24001RGWR is a state-of-the-art integrated circuit designed and manufactured by Texas Instruments (TI), a global leader in semiconductor technology. This compact, high-efficiency charging solution is specifically tailored for portable applications and is part of TI's extensive portfolio of battery management products.

Key Features and Benefits

  • High Integration: The BQ24001RGWR offers a complete charge management solution, integrating power FET, current sensor, reverse-blocking protection, and high-accuracy voltage and current regulation.
  • Programmable Charging Parameters: With the ability to program charge parameters such as current and voltage, this IC gives designers the flexibility to tailor the charging profile to specific battery chemistries and sizes.
  • Thermal Regulation: To ensure safety and maintain longevity of the battery, the device features thermal regulation that reduces charge current during temperature extremes.
  • Charge Status Indicators: The IC includes status outputs that provide real-time charge status, which can be used to drive LEDs or interface with a host processor.
  • Energy Efficiency: Its high-efficiency design helps to minimize heat generation and power loss during the charging process, contributing to longer battery life and overall energy savings.

Applications

The BQ24001RGWR is versatile and can be used across a wide range of portable electronics, including:

  • Smartphones and tablets
  • Digital cameras and portable media players
  • Handheld gaming devices
  • Bluetooth headsets and wearable technology

Quality and Reliability

As with all Texas Instruments products, the BQ24001RGWR is designed to meet the highest standards of quality and reliability. It is available in a compact 20-pin VQFN package, making it ideal for space-constrained applications. TI's commitment to innovation ensures that the BQ24001RGWR provides a sophisticated, reliable charging solution for today's high-performance portable devices.

For detailed technical specifications, application notes, and support resources, designers and engineers are encouraged to visit the Texas Instruments website or contact their local TI representative.
