Product Overview: Texas Instruments ADS8685IPW

The Texas Instruments ADS8685IPW is a high-precision, 16-bit, successive approximation register (SAR) analog-to-digital converter (ADC) that offers a compelling combination of features designed to meet the rigorous demands of industrial data acquisition, process control, and instrumentation systems.

Key Features

• High Performance: With 16-bit resolution, the ADS8685IPW provides excellent accuracy and low noise performance, ensuring precise measurements for critical applications.
• Wide Input Range: The device supports a true bipolar input range of ±10.24V, allowing it to handle a variety of signal levels without additional signal conditioning.
• High Data Rate: A maximum sampling rate of 500 kSPS (kilo samples per second) enables the capture of fast transient signals, making it suitable for high-speed systems.
• Integrated Reference: An internal 4.096V reference voltage eliminates the need for external components, simplifying design and reducing system cost.
• Flexible Interface: The SPI-compatible serial interface ensures easy integration with most microcontrollers and digital systems.
• Multi-Range Operation: The ADS8685IPW supports multiple input ranges, including ±10.24V, ±5.12V, 0-10.24V, and 0-5.12V, providing versatility for different application requirements.

Applications

The ADS8685IPW is ideal for a wide range of applications, including:

• Industrial process control
• Motor control
• Power monitoring
• Data acquisition systems
• Test and measurement equipment

Package and Quality

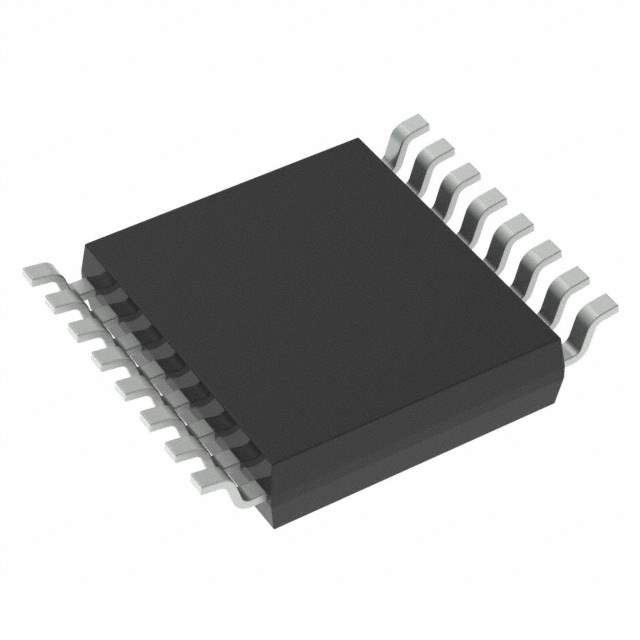

The device is offered in a compact TSSOP-16 package, which is designed to occupy minimal space on a printed circuit board. It is specified for operation over the extended industrial temperature range of -40°C to +125°C, ensuring reliability in harsh environments. Additionally, the ADS8685IPW is part of Texas Instruments' commitment to high-quality manufacturing and long-term availability, making it a trustworthy choice for industrial applications.
