Product Overview: Texas Instruments ADS7924IRTET

The ADS7924IRTET is a highly integrated, low-power, 12-bit, 4-channel analog-to-digital converter (ADC) from the renowned semiconductor manufacturer, Texas Instruments. This precision ADC is designed to operate with a single power supply ranging from 2.7V to 5.5V, making it a versatile choice for a wide array of applications where power efficiency and accuracy are crucial.

Key Features

• Resolution: The ADS7924 features a 12-bit resolution, providing fine granularity for analog signal conversion, which is essential for precision measurements.
• Multi-Channel: With four multiplexed inputs, the device allows for multiple signal acquisitions, making it ideal for systems that require several analog inputs to be digitized.
• Low Power Consumption: It is optimized for power-sensitive applications, with a typical power consumption of only 150μA at a 200SPS sampling rate.
• Programmable Data Rate: Users can select from several data rates, up to 200 samples per second (SPS), to balance the speed requirements with power consumption.
• Integrated Features: The ADC includes an internal oscillator, temperature sensor, and a reference voltage source, reducing external component count and system complexity.
• I2C Interface: For easy communication with microcontrollers or processors, the ADS7924 incorporates an I2C-compatible serial interface.

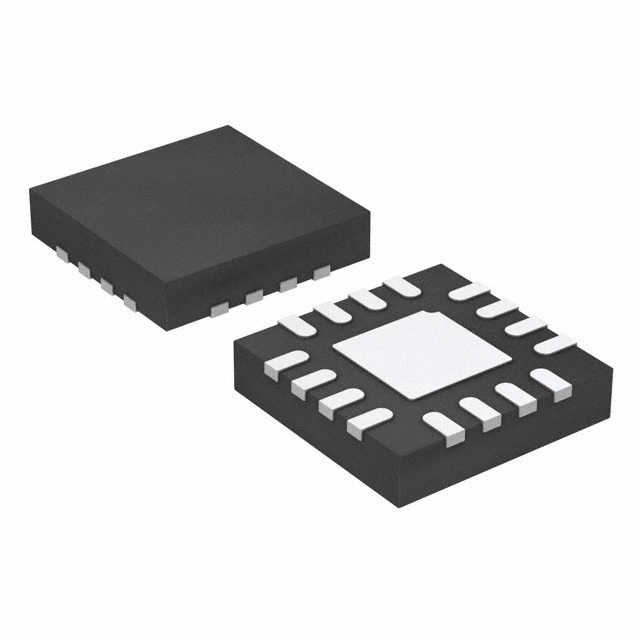

• Small Form Factor: Housed in a tiny 16-lead QFN package, the ADS7924 is suitable for space-constrained applications.

Applications

The ADS7924IRTET is an excellent choice for a variety of applications that require multiple-channel ADCs with low power consumption. It is widely used in battery-powered devices, portable medical instruments, consumer electronics, and industrial monitoring systems. Its small size and high level of integration make it particularly well-suited for portable and remote sensing applications where size and power are at a premium.

Conclusion

Overall, the ADS7924IRTET by Texas Instruments is a robust, multi-channel ADC solution that offers a blend of performance, power efficiency, and integration. Its versatility and ease of use make it an attractive option for designers looking to add reliable analog-to-digital conversion to their next project.
