The ADS7924IRTER is a state-of-the-art, low-power, 12-bit analog-to-digital converter (ADC) designed and manufactured by Texas Instruments. This high-performance device is well-suited for a variety of applications that demand precise digital representation of analog signals, particularly in battery-powered and portable devices due to its ultra-low power consumption.

Key Features

• Resolution: The ADS7924IRTER offers a 12-bit resolution, ensuring fine detail in the analog signal conversion process, which is crucial for applications that require high levels of accuracy.
• Channel Count: It features four multiplexed inputs, allowing for multiple signal channels to be processed by a single ADC, saving space and reducing complexity in system design.
• Low Power Consumption: With a typical power consumption of only 0.9uA at a 1Hz sample rate, this device is optimized for energy efficiency, making it ideal for portable and remote sensing applications.
• Data Rate: The ADS7924IRTER supports data rates up to 200 samples per second (SPS), providing a good balance between speed and power usage.
• Interface: The device includes an I2C-compatible serial interface, which simplifies connectivity with microcontrollers and processors, facilitating easy integration into existing systems.

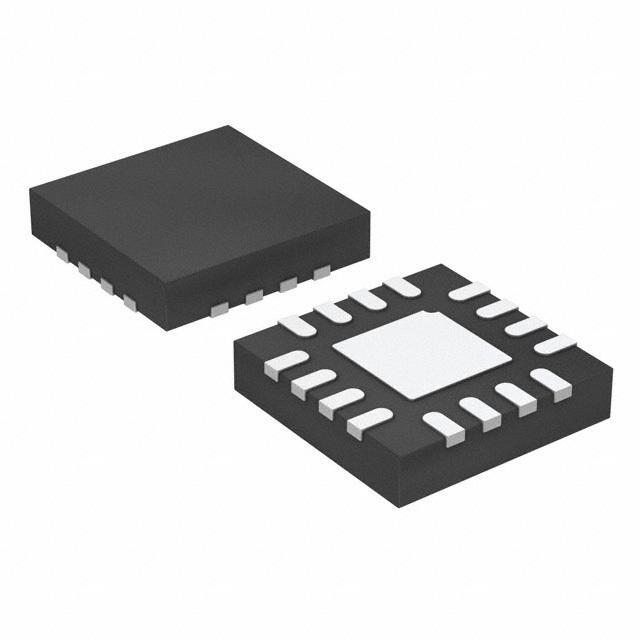

• Package: It is available in a compact WQFN-16 package, which is highly advantageous for space-constrained applications.

Applications

The versatile nature of the ADS7924IRTER makes it an excellent choice for a wide array of applications, including:

• Portable medical devices
• Battery-operated equipment
• Power-sensitive wireless sensors
• Industrial monitoring systems
• Data acquisition systems

Conclusion

In summary, the ADS7924IRTER from Texas Instruments is a highly efficient, compact, and precise ADC solution that meets the needs of modern, power-sensitive applications. Its combination of low power consumption, multiple input channels, and high resolution makes it a top choice for designers looking to optimize their systems for both performance and energy efficiency.
