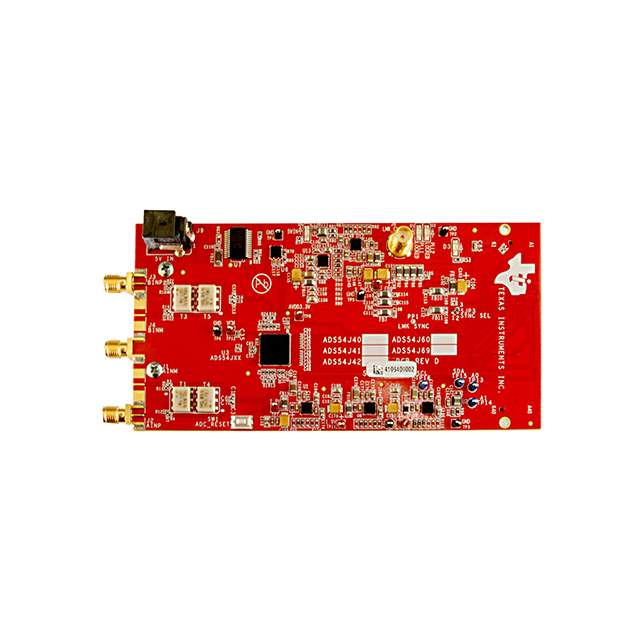

The ADS54J40EVM is a high-performance, dual-channel Evaluation Module (EVM) from Texas Instruments (TI) designed to showcase the capabilities of the ADS54J40, a 14-bit, 1-GSPS (Giga Samples Per Second) analog-to-digital converter (ADC). This EVM is an essential tool for designers and engineers to evaluate the operation and performance of the ADS54J40 ADC in various applications, including wireless communications, radar systems, test and measurement equipment, and electronic warfare.

Key Features and Benefits

• High-Speed Performance: With a sampling rate of up to 1 GSPS, the ADS54J40EVM allows for the capture of high-frequency signals with excellent fidelity, making it ideal for demanding applications that require high-speed data acquisition.
• Dual-Channel Operation: The dual-channel architecture enables simultaneous sampling of two analog inputs, which is critical for systems that require channel matching and timing synchronization.
• Advanced Digital Processing: The ADS54J40 features digital down-conversion (DDC), decimation filters, and a complex mixer, providing flexibility in processing baseband signals.
• Easy-to-Use Interface: The EVM includes a user-friendly graphical user interface (GUI) for easy control and data analysis, enabling rapid prototyping and testing.
• Flexible Input Options: Users can evaluate various input drive options thanks to the configurable input transformer, which can be adapted for single-ended or differential inputs.

Applications

The ADS54J40EVM is suitable for a wide range of applications, including:

• Wireless communication infrastructure
• Radar and satellite communication systems
• Test and measurement equipment
• Electronic warfare and defense systems

Design Support and Resources

TI provides comprehensive design support for the ADS54J40EVM, including detailed documentation, reference designs, and technical support from TI's expert team. Users can access a wealth of resources to expedite the design process and integrate the ADS54J40 into their projects with confidence.

For more information on the ADS54J40EVM, visit the Texas Instruments product page where you can find datasheets, user guides, and additional resources to help you get started with your evaluation and design efforts.
