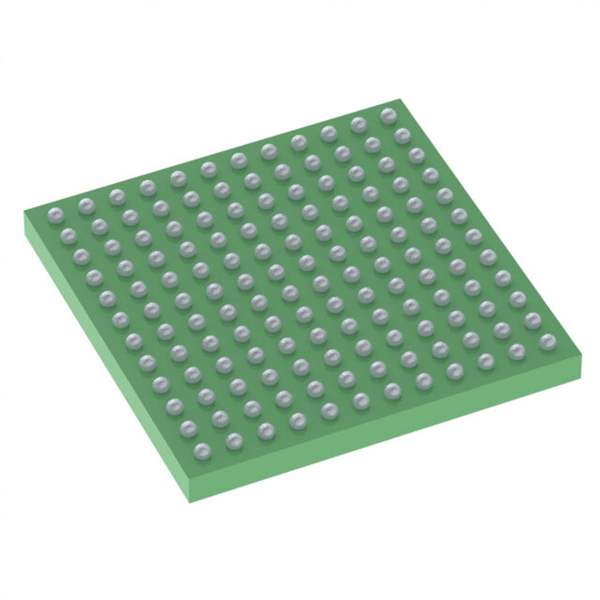

ADC09QJ1300AAV Texas Instruments – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

ADC09QJ1300AAV

Part No ADC09QJ1300AAV
Manufacturer Texas Instruments
Catalog Data Acquisition - Analog to Digital Converters (ADC)
Description QUAD-CHANNEL, 9-BIT, 1.3-GSPS AN
Datasheet
ADC09QJ1300AAV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)Data AcquisitionAnalog to Digital Converters (ADC)
Manufacturer Texas Instruments
Packaging Tray
Part Status Active
Number of Bits 9
Sampling Rate (Per Second) 1.3G
Number of Inputs 4
Input Type Differential
Data Interface JESD204C, Serial
Configuration ADC
Number of A/D Converters 4
Architecture Pipelined, SAR
Voltage - Supply, Analog 1.05V ~ 1.15V, 1.8V ~ 2V
Voltage - Supply, Digital 1.05V ~ 1.15V
Operating Temperature -40°C ~ 85°C

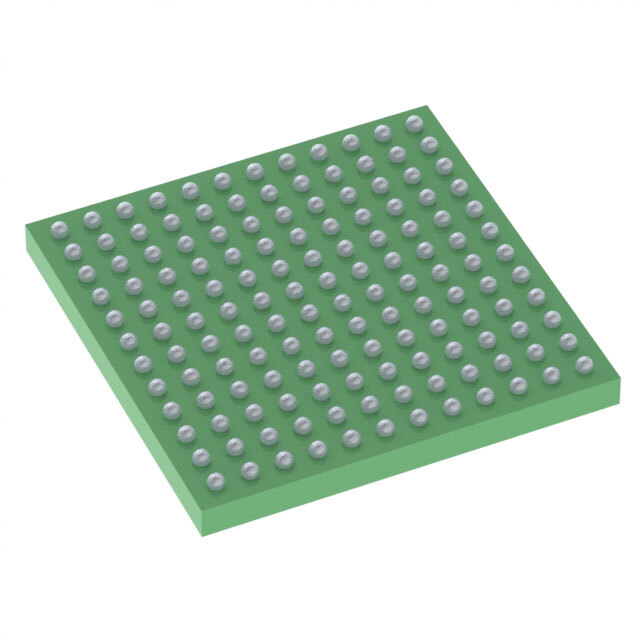

Package / Case 144-FBGA, FCBGA
Supplier Device Package 144-FCBGA (10x10)
Mounting Type Surface Mount
Ultra Librarian 3D Model Ultra Librarian ADC09QJ1300AAV CAD Model
