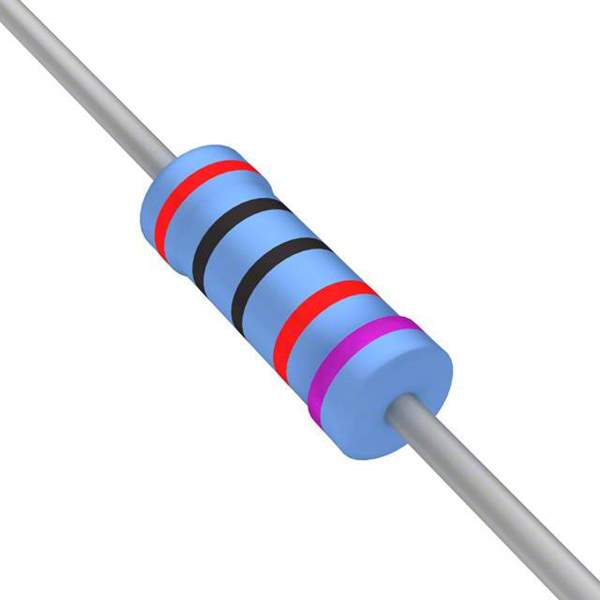

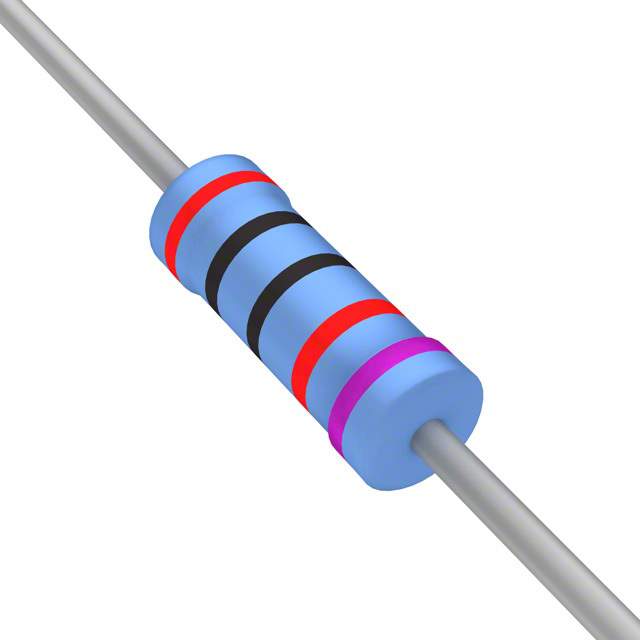

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr TE Connectivity Passive Product
Series YR, Neohm
Package Cut Tape (CT),Tape & Box (TB)
Resistance 20 kOhms
Tolerance ±0.1%
Power (Watts) 0.25W, 1/4W
Composition Metal Film
Temperature Coefficient ±15ppm/°C
Temperature Range - Operating -65°C ~ 155°C
Package / Case Axial
Supplier Device Package Axial
Dimension 0.091" Dia x 0.248" L (2.30mm x 6.30mm)
Number of Terminations 2
Base Product Number YR1B
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.21.0090
Other Names 316769130,3-1676913-0,A105929TB,A105929TR,3-1676913-0-ND,A105929CT,A105929TR-ND
Standard Package 1,000
Win Source Part Number 1016065-YR1B20KCC
Ultra Librarian 3D Model Ultra Librarian YR1B20KCC CAD Model

Description

The TE Connectivity Passive Product YR1B20KCC is a metal film through-hole resistor with a resistance of 20 kOhms and a tolerance of ±0.1%. It has a power rating of 0.25W and a temperature coefficient of ±15ppm/°C. This resistor has a diameter of 2.30mm and a length of 6.30mm. It is suitable for use in various electronic circuits that require precise resistance values. It has a wide operating temperature range of -65°C to 155°C and is available in cut tape or tape & box packaging.
