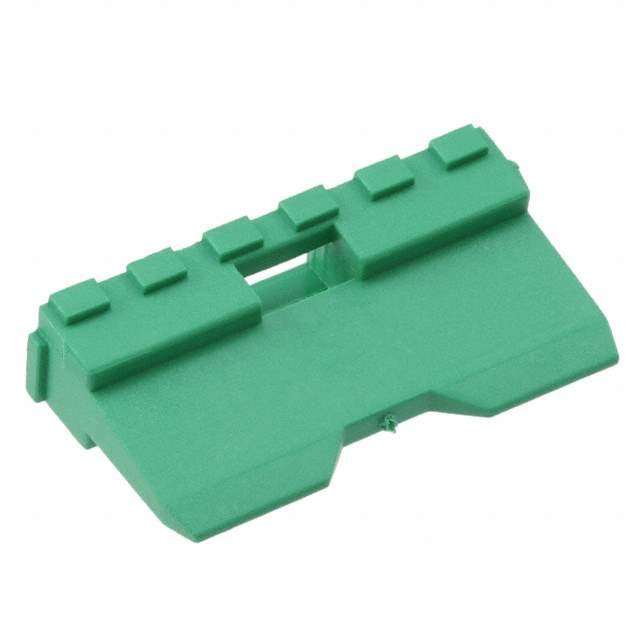

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Accessories
Manufacturer TE Connectivity Deutsch Connectors
Packaging Box
Accessory Type Wedgelock
Number of Positions 12
For Use With/Related Products DT Series Receptacles
Base Product Number W12
RoHS Status RoHS Compliant
MSL Level Not Applicable
ECCN EAR99
HTSUS 8538.90.8180
Other Part Number 1734-1034,-W12P-SI
Standard Package 1
Win Source Part Number 1334127-W12P
Ultra Librarian 3D Model Ultra Librarian W12P CAD Model

Description

The TE Connectivity Deutsch Connectors W12P is a wedgelock accessory that is designed to be used with DT Series Receptacles.

  • Positions: 12
  • Packaging: Box
  • Category: Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Accessories
  • ECCN: EAR99
  • RoHS Compliant: Yes
  • Base Product Number: W12
  • Standard Package: 1
