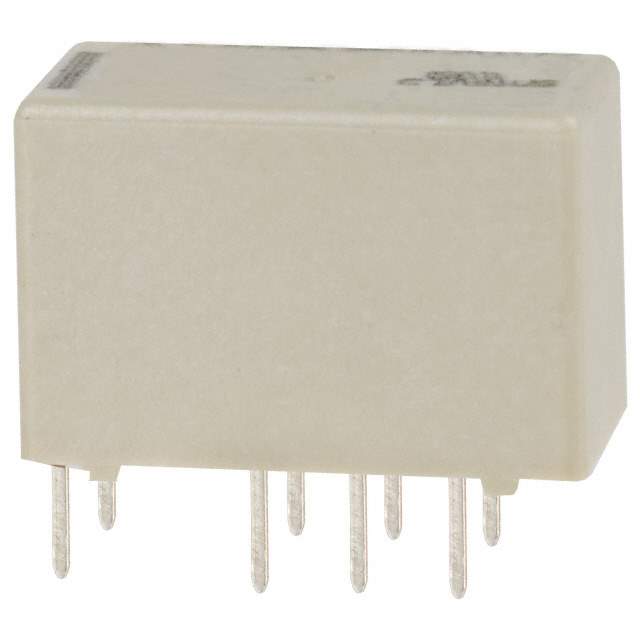

V23079B1201B301 Real Image
Same model may have multiple batches, images only for reference.

V23079B1201B301

Part No V23079B1201B301
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description RELAY GEN PURPOSE DPDT 2A 5VDC / General Purpose Relay DPDT (2 Form C) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Signal Relays, Up to 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series V23079, AXICOM
Package Tube
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2 A
Switching Voltage 250VAC, 220VDC - Max
Coil Current 28 mA
Coil Type Latching, Dual Coil
Termination Style PC Pin
Must Operate Voltage 3.75 VDC
Operate Time 4 ms
Release Time 4 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi), Gold (Au)
Relay Type General Purpose
Coil Resistance 178 Ohms
Base Product Number V23079
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1315028-V23079B1201B301
Ultra Librarian 3D Model Ultra Librarian V23079B1201B301 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays V23079B1201B301 is a DPDT (2 Form C) signal relay with a contact rating of 2A and a switching voltage of 250VAC, 220VDC - Max.

  • Relay Type: Signal Relay
  • Contact Configuration: DPDT (2 Form C)
  • Contact Rating: 2A
  • Switching Voltage: 250VAC, 220VDC - Max
  • Coil Voltage: 5VDC
  • Coil Resistance: 178 Ohms
  • Coil Type: Latching, Dual Coil
  • Operate Current: 28mA
  • Operate Time: 4ms
  • Release Time: 4ms
  • Application: General Purpose
  • Mounting Type: Through-Hole
  • Temperature Range: -40°C to 85°C
  • MSL Level: 1 (unlimited)
  • Must Operate Voltage: 3.75VDC
