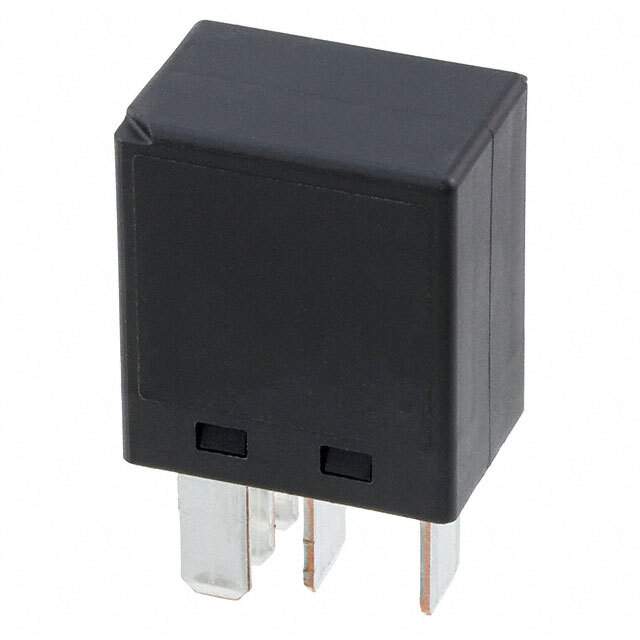

V23074A1001A403 Real Image
Same model may have multiple batches, images only for reference.

V23074A1001A403

Part No V23074A1001A403
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description Relay Automotive SPDT 35A 12VDC 96 Ohm Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package 120
Coil Current 100.8 mA
Coil Power 1.4 W
Coil Resistance 119 Ω
Coil Voltage (DC) 12 V
Contact Current Rating 25 A
Contact Material Silver
Current Rating 15 A
Depth 15.5 mm
ELV Compliant
Height 25.4 mm
Lead Free Not Applicable
Length 23 mm
Maximum Operating Temperature 125 °C
Min Operating Temperature -40 °C
Mount PCB, Plug-In
Number of Contacts 1
Number of Pins 5
Operate Time 5 ms
Radiation Hardening No
REACH SVHC Unknown
Relay Type Relay
RoHS Compliant
Termination Plug, Tab
Throw Configuration SPDT
Voltage Rating (DC) 12 V
Weight 16 g
Width 15.5 mm
Win Source Part Number 1103598-V23074A1001A403
Categories Power Relays,Over 2 Amps
Manufacturer TE Connectivity
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian V23074A1001A403 CAD Model

Description

TE Connectivity Power Relay is a high-performance relay designed for use in a wide variety of applications, including power distribution, automation, and control systems. TE Connectivity Power Relay features a plug and tab termination.

  • Termination: Plug and tab
  • Contact Material: Silver
  • Current Rating: 15 A
  • Contact: Single
  • Length: 23 mm
  • Mounting: SMD (SMT)
  • Coil Resistance: 119 Ω
  • Coil Current: 100.8 mA
  • Contact Current Rating: 25 A
  • Operate Time: 5 ms
  • Relay Type: SPDT
  • Coil Power: 1.4 W
  • Height: 25.4 mm
  • Weight: 16 g
  • Pins: 5
  • Width: 15.5 mm
  • Maximum Operating Temperature: 125 °C
  • Minimum Operating Temperature: -40 °C
  • RoHS: Compliant
  • Radiation Hardening: No
