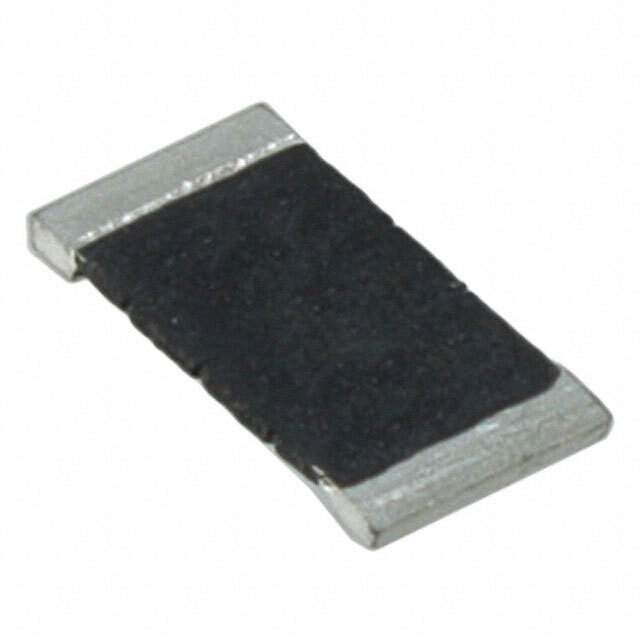

TL3AR033F Real Image
Same model may have multiple batches, images only for reference.

TL3AR033F

Part No TL3AR033F
Manufacturer TE Connectivity
Catalog Chip Resistor - Surface Mount
Description RES 0.033 OHM 1% 1W 2512 / 33 mOhms ±1% 1W Chip Resistor 2512 (6432 Metric) Current Sense Metal Foil
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series TL, CGS
Package Tape & Reel (TR),Cut Tape (CT)
Resistance 33 mOhms
Tolerance ±1%
Power (Watts) 1W
Composition Metal Foil
Features Current Sense
Temperature Coefficient ±75ppm/°C
Temperature Range - Operating -65°C ~ 170°C
Package / Case 2512 (6432 Metric)
Supplier Device Package 2512
Dimension 0.252" L x 0.126" W (6.40mm x 3.20mm)
Height - Seated (Max) 0.024" (0.60mm)
Number of Terminations 2
Base Product Number TL3AR
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names 16258278,A105817,A105817TR,A105817-ND,1625827-8-ND,A105817CT,1625827-8
Standard Package 2,000
Win Source Part Number 1094603-TL3AR033F
Ultra Librarian 3D Model Ultra Librarian TL3AR033F CAD Model

Description

The TL3AR033F is a metal foil chip resistor designed for use in surface mount applications from CGS/TE Connectivity.

  • Resistance: 33 mOhms
  • Tolerance: ±1%
  • Power Rating: 1W
  • Temperature Coefficient: ±75ppm/°C
  • Temperature Range: -65°C to 170°C
  • Package: 2512 (6432 Metric)
  • Pieces per Standard Package: 2,000
  • Height Seated: 0.024" (0.60mm)
  • Terminations: 2
  • Series: TL and CGS
  • Application: Current sensing
