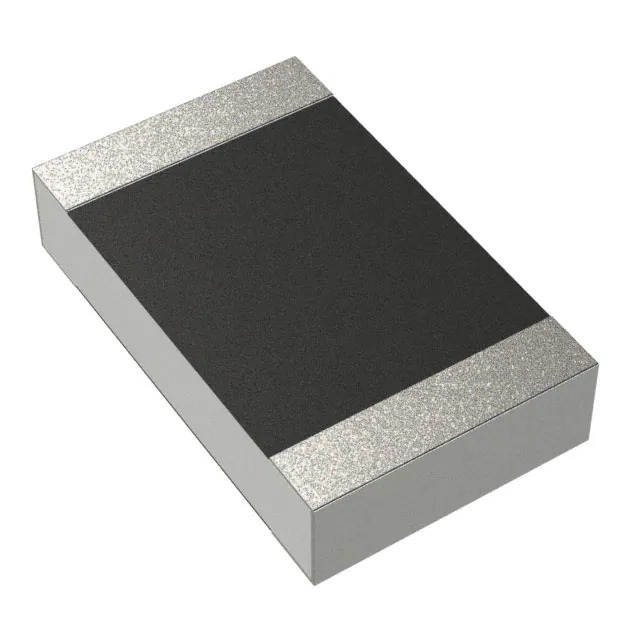

PE0805FRM7T0R04L Yageo
Same model may have multiple batches, images only for reference.

PE0805FRM7T0R04L

Part No PE0805FRM7T0R04L
Manufacturer Yageo
Catalog Chip Resistor - Surface Mount
Description RES 0.04 OHM 1% 1/3W 0805
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr YAGEO
Series PE
Package Tape & Reel
Product Status Active
Resistance 40 mOhms
Tolerance ±1%
Power (Watts) 0.333W, 1/3W
Composition Metal Film
Features Automotive AEC-Q200, Current Sense, Moisture Resistant
Temperature Coefficient ±75ppm/°C
Temperature Range - Operating -55°C ~ 170°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Ratings AEC-Q200
Size / Dimension 0.080" L x 0.050" W (2.03mm x 1.27mm)
Height - Seated (Max) 0.024" (0.60mm)
Number of Terminations 2
Failure Rate -
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1375397-PE0805FRM7T0R04L
Ultra Librarian 3D Model Ultra Librarian PE0805FRM7T0R04L CAD Model

Description

The YAGEO 1375397-PE0805FRM7T0R04L is a chip resistor designed for surface mount applications.

  • Manufacturer: YAGEO
  • Series: PE
  • Product Category: Chip Resistors
  • Resistance: 40 milliohms
  • Tolerance: ±1%
  • Power Rating: 0.333W (1/3W)
  • Current Sensing: Suitable for accurate current sensing applications
  • Moisture Resistant: Yes
  • Automotive Standard: AEC-Q200
  • Package: 0805 (2012 metric)
  • Temperature Coefficient: ±75ppm/°C
