Same model may have multiple batches, images only for reference.

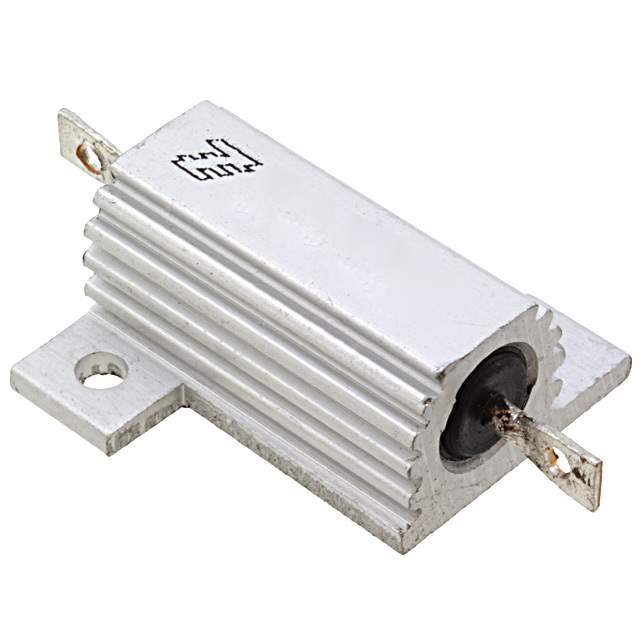

THS5075RJ Real Image
Same model may have multiple batches, images only for reference.

THS5075RJ

Part No THS5075RJ
Manufacturer TE Connectivity
Catalog Chassis Mount Resistors
Description RES CHAS MNT 75 OHM 5% 50W / 75 Ohms ±5% 50W Wirewound Chassis Mount Resistor
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chassis Mount Resistors
Mfr TE Connectivity Passive Product
Series THS, CGS
Package Tray
Resistance 75 Ohms
Tolerance ±5%
Power (Watts) 50W
Composition Wirewound
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 200°C
Coating, Housing Type Aluminum
Mounting Feature Flanges
Dimension 2.008" L x 1.181" W (51.00mm x 30.00mm)
Height - Seated (Max) 0.669" (17.00mm)
Lead Style Solder Lugs
Package / Case Axial, Box
Base Product Number THS50
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8533.29.0000
Other Names 3-1879071-7-ND,A132074,3-1879071-7,THS5075RJ-ND
Standard Package 100
Win Source Part Number 1063517-THS5075RJ
Ultra Librarian 3D Model Ultra Librarian THS5075RJ CAD Model

Description

The THS5075RJ is a chassis mount resistor that is part of the THS, CGS series manufactured by TE Connectivity Passive Product.

  • Mounting Type: Through-hole
  • Package: Tray
  • Tolerance: ±5%
  • Temperature Coefficient: ±50ppm/°C
  • Power: 50W
  • Resistance: 75 Ohms
  • Mounting Feature: Flanges
  • Material: Wirewound
  • Operating Temperature: -55°C ~ 200°C
  • Win Source Part Number: 1063517-THS5075RJ
