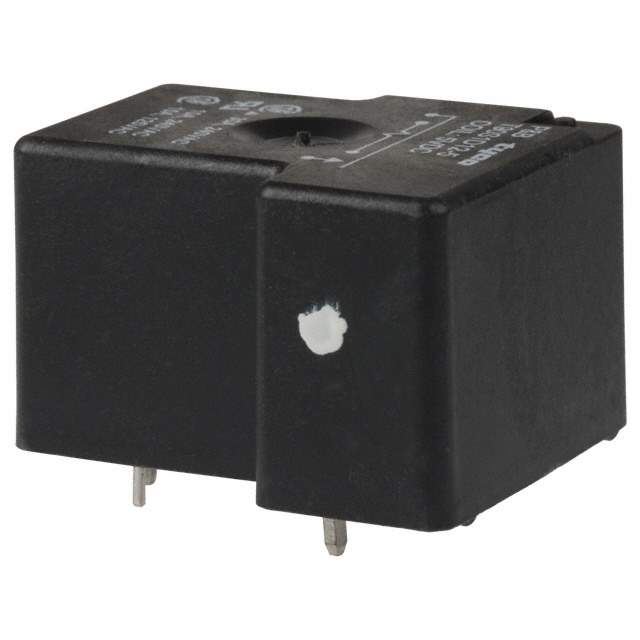

T90S5D12-24 Real Image
Same model may have multiple batches, images only for reference.

T90S5D12-24

Part No T90S5D12-24
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 20A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Bulk
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 36mA
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 20A
Switching Voltage 240VAC, 28VDC - Max
Turn On Voltage (Max) 18 VDC
Turn Off Voltage (Min) 2.4 VDC
Operate Time 15ms
Release Time 15ms
Features Insulation - Class F, Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 900 mW
Coil Resistance 660 Ohms
Temperature Range - Operating -55°C to 85°C
Win Source Part Number 047699-T90S5D12-24
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian T90S5D12-24 CAD Model

Description

The T90S5D12-24 is a general purpose relay manufactured by TE Connectivity Potter & Brumfield Relays.

  • Coil Voltage: 24VDC
  • Coil Resistance: 660 Ohms
  • Contact Form: SPDT (1 Form C)
  • Contact Rating: 20A
  • Switching Voltage: Up to 240VAC and 28VDC - Max
  • Turn On Voltage (max): 18 VDC
  • Turn Off Voltage (min): 2.4 VDC
  • Release Time: 15ms
  • Operate Time: 15ms
  • Coil Type: Non-Latching
  • Coil Power: 900 mW
  • Insulation: Class F
  • Sealed: Fully Sealed
  • Supply and Demand Status: Limited
  • Status: Active
  • Operating Temperature: -55°C to 85°C
