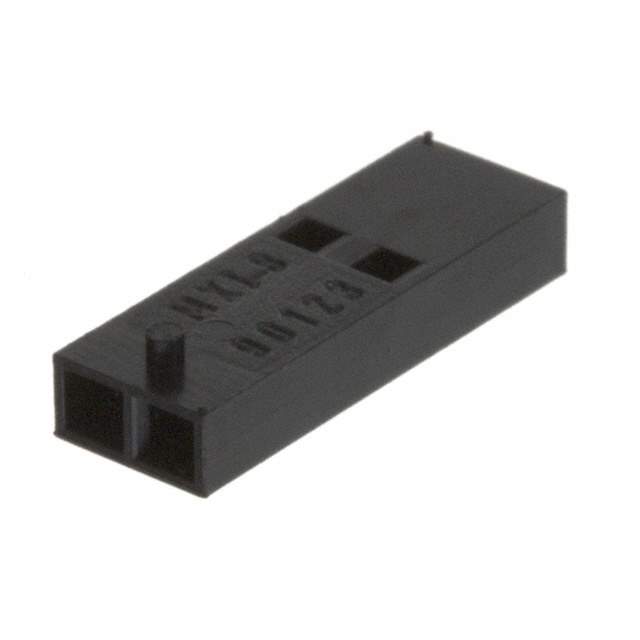

90123-0102 Real Image
Same model may have multiple batches, images only for reference.

90123-0102

Part No 90123-0102
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description 2.54mm Pitch C-Grid III Modular Crimp Housing Single Row, 2 Polarizing Buttons, 2 Circuits
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Case / Package 0102
Connector Type Power, Rectangular
Contact Gender Female
Contact Resistance 20 mΩ
Country of Origin US
Current Rating 3 A
Depth 15.24 mm
Flammability Rating UL94 V-1
Gender Receptacle
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Housing Color Black
Housing Material PPO
Insulation Resistance 5 GΩ
Lead Free Lead Free
Lead Pitch 2.54 mm
Length 5.08 mm
Max Operating Temperature 105 °C
Min Operating Temperature -55 °C
Mount Cable
Number of Circuits 26
Number of Contacts 2
Number of Pins 2
Number of Positions 2
Number of Rows 1
Orientation Right Angle
Packaging Bulk
Pitch 2.54 mm
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Termination Crimp
Voltage Rating (AC) 350 V
Width 3.43 mm
Win Source Part Number 1202087-90123-0102
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 90123-0102 CAD Model

Description

The 1202087-90123-0102 is a power rectangular connector manufactured by Molex, LLC.

  • Rows: Two
  • Pitch: 2.54mm
  • Contacts: Two
  • Termination: Crimp
  • Current Rating: 3A
  • Contact Resistance: 20 mΩ
  • Insulation Resistance: 5 GΩ
  • RoHS Compliant: Yes
  • Halogen Content: Low
