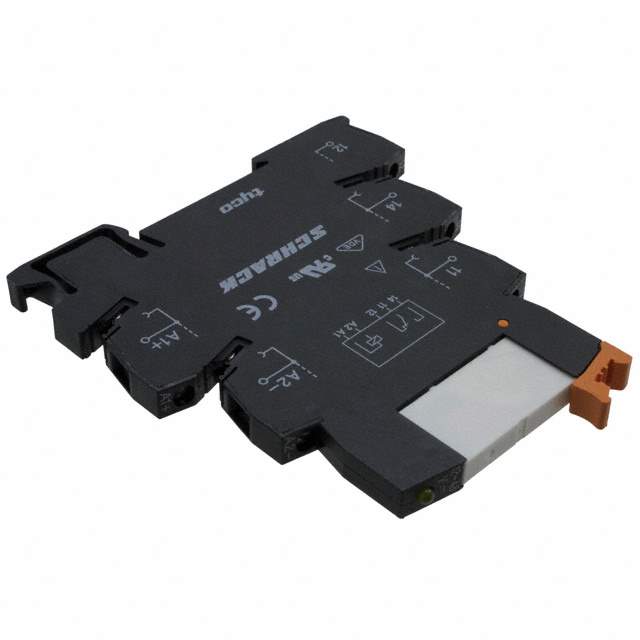

ST3P3LC4 Real Image
Same model may have multiple batches, images only for reference.

ST3P3LC4

Part No ST3P3LC4
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series SNR, SCHRACK
Package Bulk
Mounting Type DIN Rail
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 6 A
Switching Voltage 400VAC - Max
Coil Current 7 mA
Coil Type Non Latching
Features Socket Included
Termination Style Screw Terminal
Seal Rating Sealed - Fully
Must Operate Voltage 16.8 VDC
Must Release Voltage 1.2 VDC
Operate Time 12 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 55°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 3.4 kOhms
Base Product Number ST3P
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1316271-ST3P3LC4
Ultra Librarian 3D Model Ultra Librarian ST3P3LC4 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays electronic component is a high-quality product that is suitable for various applications.

  • Win Source Part Number: 1316271-ST3P3LC4
  • Series: SNR, SCHRACK
  • Relay Type: SPDT (1 Form C)
  • Contact Rating: 6A
  • Switching Voltage: 400VAC - Max
  • Operate Time: 12ms
  • Seal: Fully Sealed
  • Temperature Range: -40°C to 55°C
The product is reliable and durable, and it can be used in various electronic devices.
