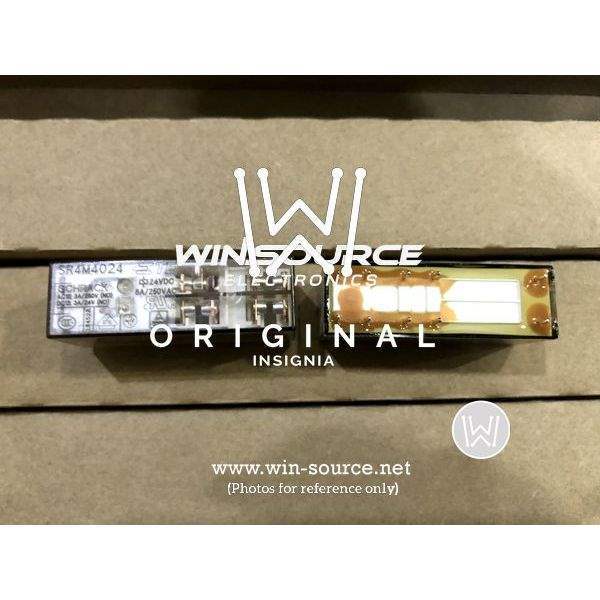

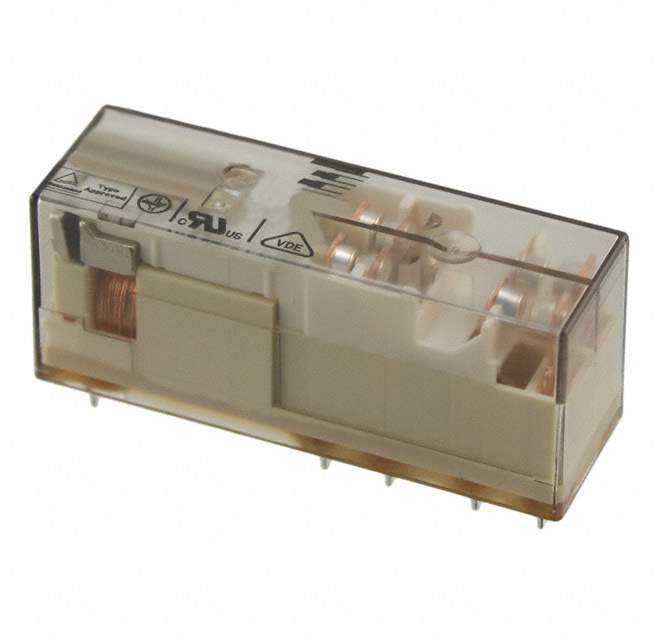

SR4M4024 TE Connectivity SR4M4024 Real Image SR4M4024 real image 2 SR4M4024 real image 3 SR4M4024 label picture SR4M4024 label picture 2
Same model may have multiple batches, images only for reference.
SR4M4024 TE Connectivity SR4M4024 Real Image SR4M4024 real image 2 SR4M4024 real image 3 SR4M4024 label picture SR4M4024 label picture 2
SR4M4024 TE Connectivity SR4M4024 Real Image SR4M4024 real image 2 SR4M4024 real image 3 SR4M4024 label picture SR4M4024 label picture 2
Same model may have multiple batches, images only for reference.

SR4M4024

Part No SR4M4024
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY SAFETY 4PST 8A 24V
Datasheet
SR4M4024 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type Safety
Coil Type Non Latching
Coil Current 33.3mA
Coil Voltage 24VDC
Contact Form 4PST (3 Form A, 1 Form B)
Contact Rating (Current) 8A
Switching Voltage 400VAC - Max
Turn On Voltage (Max) 18 VDC
Turn Off Voltage (Min) 2.4 VDC
Mounting Through Hole
Termination Style PC Pin
Coil Power 800 mW
Coil Resistance 720 Ohms
Temperature Range - Operating -25°C to 70°C
Win Source Part Number 212103-SR4M4024
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SR4M4024 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays SR4M4024 is a safety relay that is designed for through-hole mounting.

  • Contact Form: 4PST (3 Form A, 1 Form B)
  • Packaging: Tube/rail
  • Coil Voltage: 24VDC
  • Coil Resistance: 720 Ohms
  • Coil Current: 33.3mA
  • Coil Power: 800mW
  • Contact Rating (Current): 8A
  • Switching Voltage: 400VAC - Max
  • Turn-On Voltage (Max): 18VDC
  • Turn-Off Voltage (Min): 2.4VDC
  • Operating Temperature Range: -25°C to 70°C
  • Commonly Used In: Relay applications
