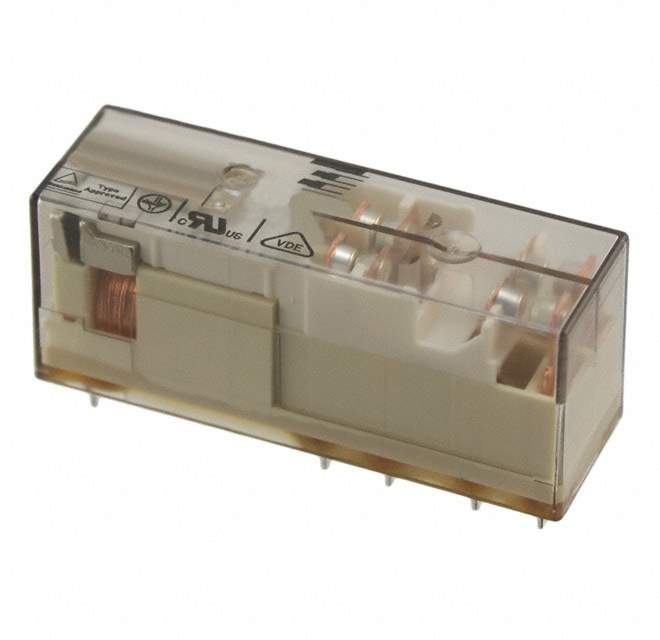

SR4D4024 Real Image
Same model may have multiple batches, images only for reference.

SR4D4024

Part No SR4D4024
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description Power Relay 24VDC 8A DPST-NO/DPST-NC(40mm 13mm 16.5mm) THT / RELAY SAFETY 4PST 8A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type Safety
Coil Type Non Latching
Coil Current 33.3mA
Coil Voltage 24VDC
Contact Form 4PST (2 Form A, 2 Form B)
Contact Rating (Current) 8A
Switching Voltage 400VAC - Max
Turn On Voltage (Max) 18 VDC
Turn Off Voltage (Min) 2.4 VDC
Mounting Through Hole
Termination Style PC Pin
Coil Power 800 mW
Coil Resistance 720 Ohms
Temperature Range - Operating -25°C to 70°C
Win Source Part Number 085237-SR4D4024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name SR4D4024
Introduction Date February 27, 2004
ECCN EAR99
Country of Origin Czech Republic, Mexico, Switzerland
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian SR4D4024 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays SR4D4024 is a 4PST (2 Form A, 2 Form B) safety relay designed for through-hole mounting.

  • Contact Form: 4PST (2 Form A, 2 Form B)
  • Mounting Type: Through-hole
  • Coil Voltage: 24VDC
  • Coil Resistance: 720 Ohms
  • Coil Current: 33.3mA
  • Contact Rating (Current): 8A
  • Switching Voltage: 400VAC (max)
  • Turn-On Voltage (Max): 18VDC
  • Turn-Off Voltage (Min): 2.4VDC
  • Coil Power: 800mW
  • Component Category: Relays
  • Status: Active
  • Operating Temperature Range: -25°C to 70°C
  • Packaging: Tube/rail
  • Family: SR4D4024
  • Estimated EOL Date: 2025
  • Halogen-Free: Compliant
