Same model may have multiple batches, images only for reference.

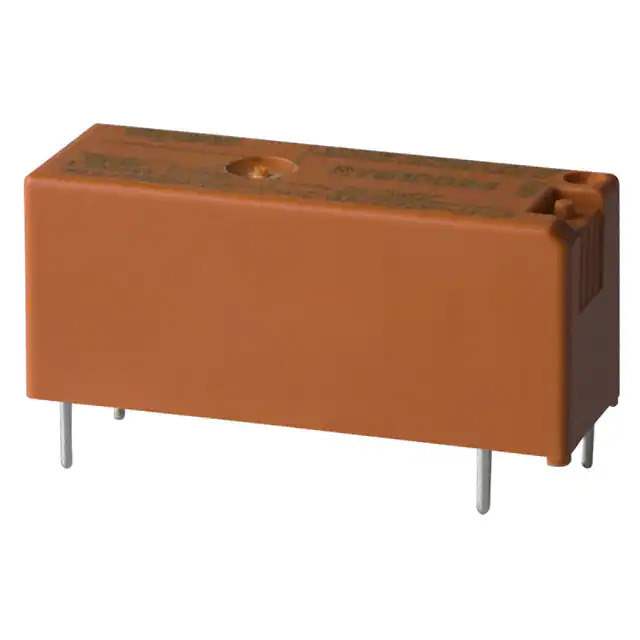

RYA30024 Real Image
Same model may have multiple batches, images only for reference.

RYA30024

Part No RYA30024
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 8A 24V / General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
Datasheet
RYA30024 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr TE Connectivity
Series RY, SCHRACK
Package Bulk
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 8 A
Switching Voltage 400VAC - Max
Coil Current 10.2 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 16.8 VDC
Must Release Voltage 2.4 VDC
Operate Time 9 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Cadmium Oxide (AgCdO)
Relay Type General Purpose
Coil Resistance 2.35 kOhms
Base Product Number RYA3
Standard Package 20 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 662129-RYA30024
Ultra Librarian 3D Model Ultra Librarian RYA30024 CAD Model

Description

The RYA30024 is a power relay from TE Connectivity's RY, SCHRACK series.

  • Series: RY, SCHRACK
  • Configuration: Single-pole, single-throw normally open (SPST-NO)
  • Contact Rating: 8A
  • Coil Voltage: 24VDC
  • Coil Resistance: 2.35 kOhms
  • Response Time: 9ms
  • Release Time: 5ms
  • Switching Voltage: Up to 400VAC
  • Termination Style: PC pin
  • Mounting: Through-hole
  • Operating Temperature: -40°C to 70°C
  • Status: Obsolete
  • Package: Bulk package of 20 pcs
