Same model may have multiple batches, images only for reference.

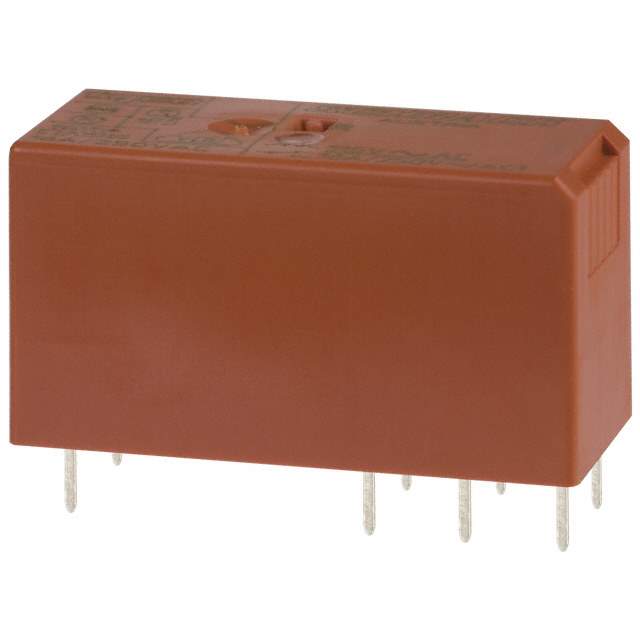

RTD14615 Real Image
Same model may have multiple batches, images only for reference.

RTD14615

Part No RTD14615
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 16A 115V / General Purpose Relay SPDT (1 Form C) 115VAC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series RT1, SCHRACK
Package Tube
Mounting Type Through Hole
Coil Voltage 115VAC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 16 A
Switching Voltage 400VAC - Max
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class F
Must Operate Voltage 86.3 VAC
Must Release Voltage 17.3 VAC
Operate Time 8 ms
Release Time 6 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 8.1 kOhms
Base Product Number RTD14
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.49.0075
Other Names -RTD14615-SI,PB983,7-1393238-5
Standard Package 20
Win Source Part Number 1170242-RTD14615
Ultra Librarian 3D Model Ultra Librarian RTD14615 CAD Model

Description

The RTD14615 is a power relay designed for use in electronic devices that require high performance and reliability from TE Connectivity Potter & Brumfield.

  • Series: RT1 (SCHRACK)
  • Termination Style: PC Pin
  • Package: Tube
  • Contact Form: SPDT (1 Form C)
  • Contact Material: Silver Nickel (AgNi)
  • Contact Rating: 16A
  • Switching Voltage: 400VAC - Max
  • Coil Voltage: 115VAC
  • Operate Time: 8ms
  • Release Time: 6ms
  • Sealed: Fully
  • Mounting: Through-Hole
  • Operating Temperature: -40°C to 70°C
