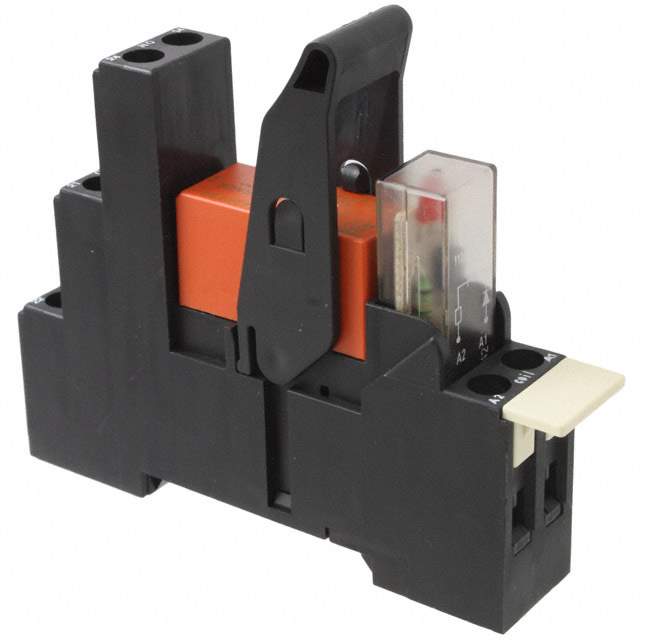

RT4S4T30 Real Image1 RT4S4T30 Real Image2 RT4S4T30 Real Image3
Same model may have multiple batches, images only for reference.
RT4S4T30 Real Image1 RT4S4T30 Real Image2 RT4S4T30 Real Image3
RT4S4T30 Real Image1 RT4S4T30 Real Image2 RT4S4T30 Real Image3
Same model may have multiple batches, images only for reference.

RT4S4T30

Part No RT4S4T30
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 8A 230V / General Purpose Relay DPDT (2 Form C) 230VAC Coil DIN Rail
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity
Series RT, SCHRACK
Package Tube
Mounting Type DIN Rail
Coil Voltage 230VAC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 8 A
Switching Voltage 400VAC - Max
Coil Current 3.2 mA
Coil Type Non Latching
Features Lighted Indicator, Socket Included
Termination Style Screw Terminal
Seal Rating -
Coil Insulation -
Must Operate Voltage 172.5 VAC
Must Release Voltage 34.5 VAC
Temperature Range - Operating -20°C ~ 70°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 32.5 kOhms
Base Product Number RT4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.49.0050
Standard Package 10 pcs
Win Source Part Number 1383349-RT4S4T30
Ultra Librarian 3D Model Ultra Librarian RT4S4T30 CAD Model

Description

The RT4S4T30 is a DPDT (2 Form C) power relay from the RT series by SCHRACK.

  • Coil Voltage: 230VAC
  • Coil Resistance: 32.5 kOhms
  • Contact Rating: 8A
  • Maximum Switching Voltage: 400VAC
  • Operate Time: 15ms
  • Release Time: 10ms
  • Termination Style: Screw Terminal
  • Features: Lighted Indicator, Socket Included
  • Mounting Type: DIN Rail
  • Temperature Range: -20°C to 70°C
