Same model may have multiple batches, images only for reference.

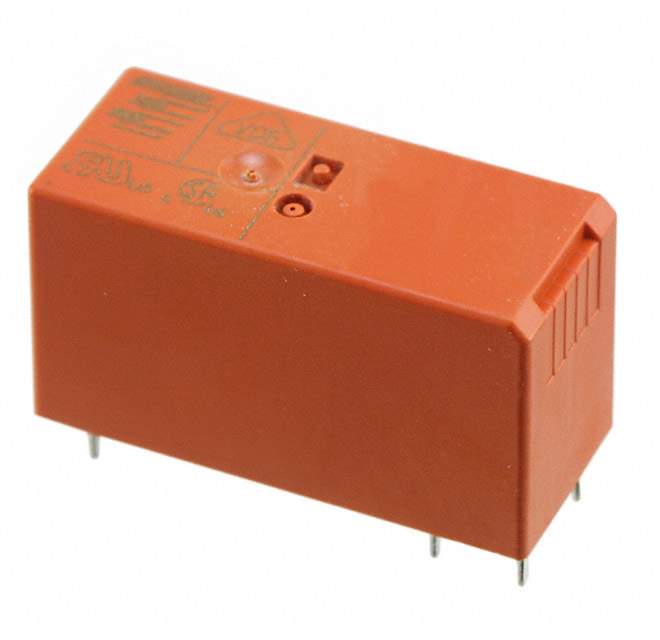

RT33K024 Real Image
Same model may have multiple batches, images only for reference.

RT33K024

Part No RT33K024
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 24V
Datasheet
RT33K024 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 16.7mA
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16A
Switching Voltage 400VAC - Max
Turn On Voltage (Max) 16.8 VDC
Turn Off Voltage (Min) 2.4 VDC
Operate Time 9ms
Release Time 6ms
Features Insulation - Class F, Sealed - Flux Protection
Mounting Through Hole
Termination Style PC Pin
Coil Power 400 mW
Coil Resistance 1.44 kOhms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 210905-RT33K024
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian RT33K024 CAD Model

Description

This general-purpose relay from TE Connectivity Potter & Brumfield Relays is a reliable solution for your electronic needs.

  • Coil Voltage: 24VDC
  • Contact Rating: 16A
  • Contact Form: SPST-NO (1 Form A)
  • Switching Voltage: 400VAC
  • Mounting Style: Through-hole
  • Coil Resistance: 1.44 kOhms
  • Coil Current: 16.7mA
  • Operate Time: 9ms
  • Insulation: Class F insulation
  • Sealed: Flux protection
  • Temperature Range: -40°C to 85°C
