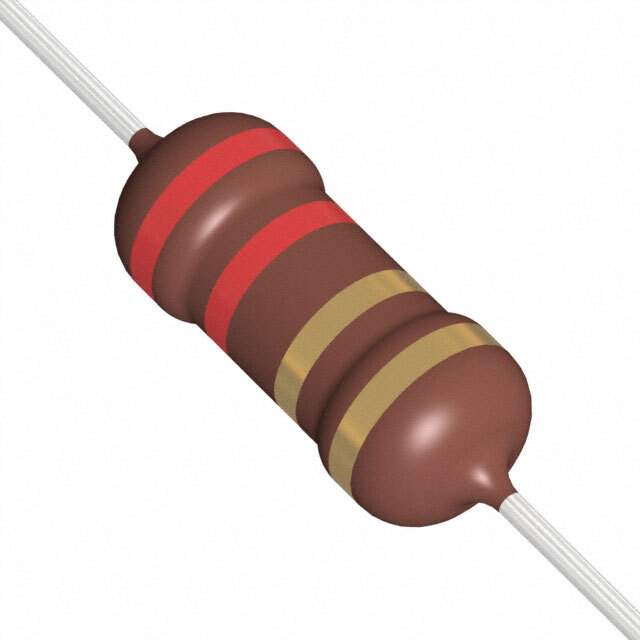

RR01J2R2TB Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors - Through Hole Resistors
Mfr TE Connectivity Passive Product
Series RR, Neohm
Package Cut Tape (CT) Tape & Box (TB)
Resistance 2.2 Ohms
Tolerance ±5%
Power (Watts) 1W
Composition Metal Film
Features Flame Retardant Coating, Pulse Withstanding, Safety
Temperature Coefficient ±300ppm/°C
Temperature Range - Operating -55°C ~ 235°C
Package / Case Axial
Supplier Device Package Axial
Size / Dimension 0.102" Dia x 0.268" L (2.60mm x 6.80mm)
Number of Terminations 2
Base Product Number RR01J
Standard Package 5,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Win Source Part Number 1337064-RR01J2R2TB
Ultra Librarian 3D Model Ultra Librarian RR01J2R2TB CAD Model

Description

The TE Connectivity Passive Product RR01J2R2TB is a through-hole resistor that is flame retardant coated, pulse-withstanding, and safety-featured. The manufacturer of this product is TE Connectivity Passive Product.

  • Features: Flame Retardant Coated, Pulse Withstanding, Safety
  • Resistance: 2.2 Ohms
  • Power (Watts): 1W
  • Tolerance: ±5%
  • Temperature Coefficient: ±300ppm/°C
  • Mounting Type: Through Hole
  • Composition: Metal Film
