Products specifications

Category Resistors - Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series RN73, Holsworthy
Package Tape & Reel
Resistance 100 kOhms
Tolerance ±0.1%
Power (Watts) 0.1W, 1/10W
Composition Thin Film
Temperature Coefficient ±10ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
Base Product Number RN73C2A
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1351655-RN73C2A100KBTDF
Ultra Librarian 3D Model Ultra Librarian RN73C2A100KBTDF CAD Model

Description

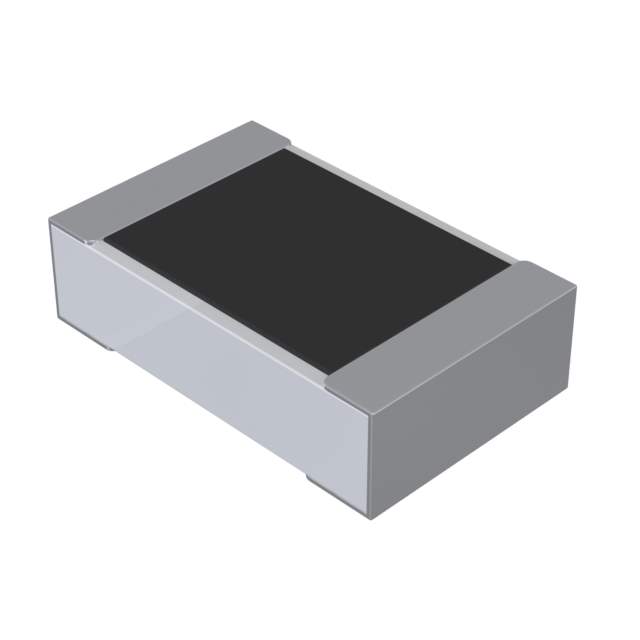

TE Connectivity Passive Product's RN73C2A100KBTDF is a chip resistor that belongs to the RN73 Holsworthy series.

  • Manufacturer: TE Connectivity Passive Product
  • Series: RN73 Holsworthy
  • Size/Dimension: 0.079 inches L x 0.049 inches W (2.00mm x 1.25mm)
  • Height-Seated (Max): 0.026 inches (0.65mm)
  • Package: Tape and Reel
  • Standard Package: 1,000
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±10ppm/°C
  • Power (Watts): 0.1W, 1/10W
  • Composition: Thin Film
  • Number of Terminations: 2
  • Resistance: 100 kOhms
  • Package/Case: 0805 (2012 Metric)
  • Supplier Device Package: 0805
  • MSL Level: 1 (Unlimited)
  • REACH Status: Unaffected
  • HTSUS Code: 8533.21.0030
