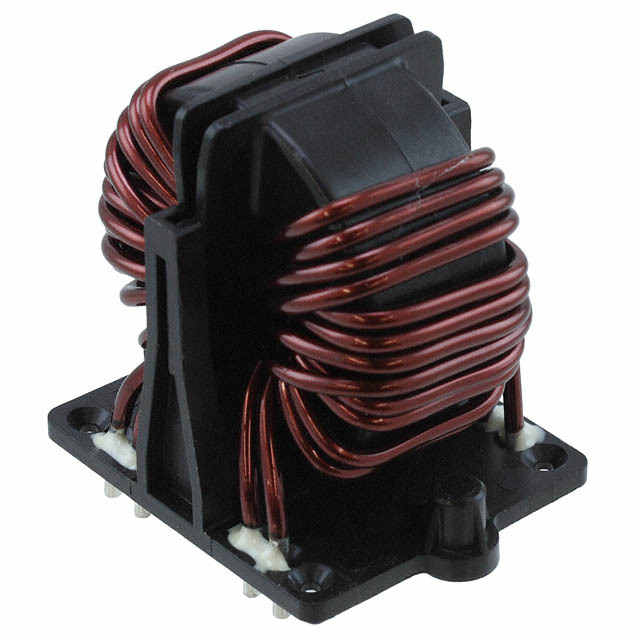

RN112-1.2-02

Part No RN112-1.2-02
Manufacturer TE Connectivity
Catalog Common Mode Chokes
Description CMC 6.8MH 1.2A 2LN TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Product Status Obsolete
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 6.8 mH @ 1 kHz
Current Rating (Max) 1.2A (Typ)
DC Resistance (DCR) (Max) 245mOhm (Typ)
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Approval Agency UR, VDE
Mounting Type Through Hole
Size / Dimension 0.697" L x 0.673" W (17.70mm x 17.10mm)
Height (Max) 0.508" (12.90mm)
Case / Package Horizontal, 4 PC Pin
Package Tube
Supply and Demand Status Shortage
Win Source Part Number 1530599-RN112-1.2-02
Ultra Librarian 3D Model Ultra Librarian RN112-1.2-02 CAD Model
