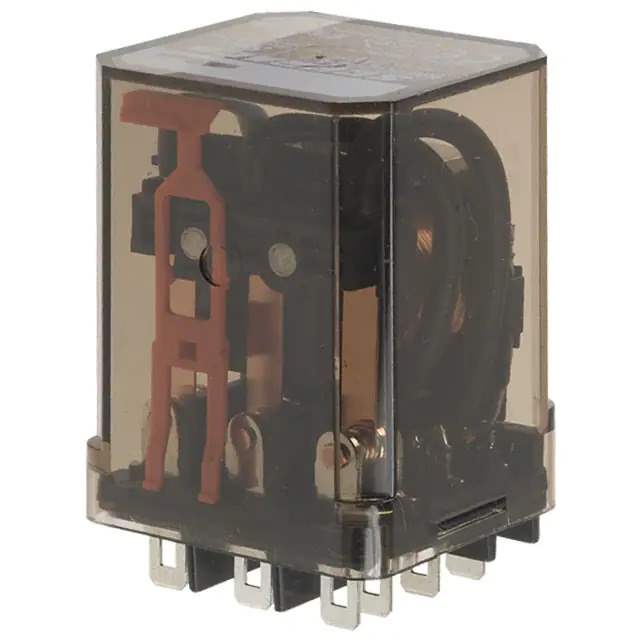

RM302024 Real Image
Same model may have multiple batches, images only for reference.

RM302024

Part No RM302024
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE 3PDT 10A 24V / General Purpose Relay 3PDT (3 Form C) 24VDC Coil Socketable
Datasheet
RM302024 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr TE Connectivity
Series RM, SCHRACK
Package Bulk
Product Status Obsolete
Mounting Type Socketable
Coil Voltage 24VDC
Contact Form 3PDT (3 Form C)
Contact Rating (Current) 10 A
Switching Voltage 440VAC - Max
Coil Current 50 mA
Coil Type Non Latching
Features Mechanical Indicator
Termination Style Plug In, Quick Connect - 0.187" (4.7mm)
Must Operate Voltage 18 VDC
Must Release Voltage 2.4 VDC
Operate Time 15 ms
Release Time 10 ms
Temperature Range - Operating -45°C ~ 60°C
Contact Material Silver Cadmium Oxide (AgCdO)
Relay Type General Purpose
Coil Resistance 475 Ohms
Base Product Number RM30
Standard Package 25 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 932256-RM302024
Ultra Librarian 3D Model Ultra Librarian RM302024 CAD Model

Description

The RM302024 is a power relay from the RM series by SCHRACK. It is a 3PDT (3 Form C) relay with a contact rating of 10 A. The coil voltage is 24VDC with a coil resistance of 475 Ohms and a coil current of 50 mA. The operate time is 15 ms and the release time is 10 ms. This general-purpose relay has a switching voltage of 440VAC - Max. It features a mechanical indicator and is socketable for easy mounting. The temperature range for operating this relay is -45°C to 60°C. The RM302024 is a reliable and versatile relay suitable for various power relay applications.
