Same model may have multiple batches, images only for reference.

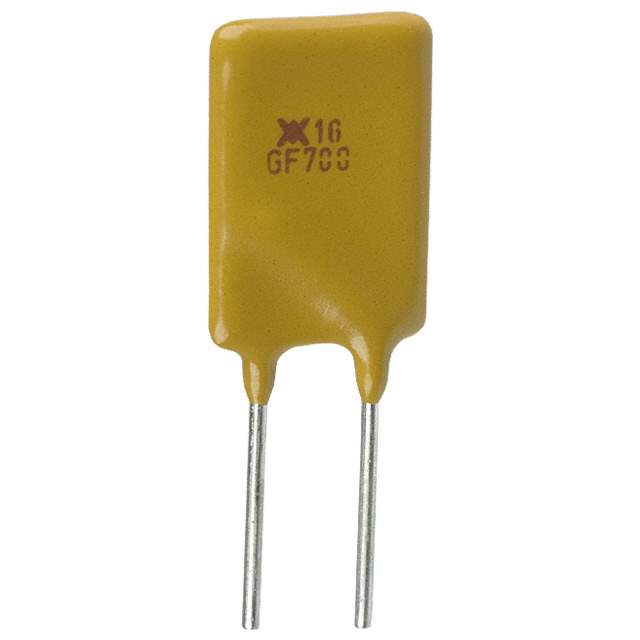

RGEF700 Real Image
Same model may have multiple batches, images only for reference.

RGEF700

Part No RGEF700
Manufacturer TE Connectivity
Catalog PTC Resettable Fuses
Description POLYSWITCH RGE SERIES 7.0A HOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity
Standard Package 500
Category Circuit Protection
Family PTC Resettable Fuses
Series PolySwitch RGEF
Packaging Bulk
Voltage - Max 16V
Current - Max 100A
Current - Hold (Ih) (Max) 7A
Current - Trip (It) 11.9A
R Min/Max 7.700 ~ 20.00 Ohm
Time to Trip 3.5s
Package Radial Disc
Catalog PolySwitch Radial Leaded
Win Source Part Number 046195-RGEF700
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RGEF700 CAD Model

Description

The PolySwitch RGEF series from TE Connectivity is a PTC resettable fuse designed for circuit protection.

  • Package: The radial disc package of the fuse is bulk packaged and has a standard package of 500 units.
  • Maximum Voltage: The RGEF series has a maximum voltage of 16V
  • Maximum Current: and a maximum current of 100A.
  • R Min/Max: The R Min/Max of the series is 7.700 ~ 20.00 Ohm.
  • Time to trip: The time to trip of the fuse is 3.5s.
  • Popularity: The Popularity of the series is medium
  • Supply and Demand Status: and the Supply and Demand Status is balanced.
