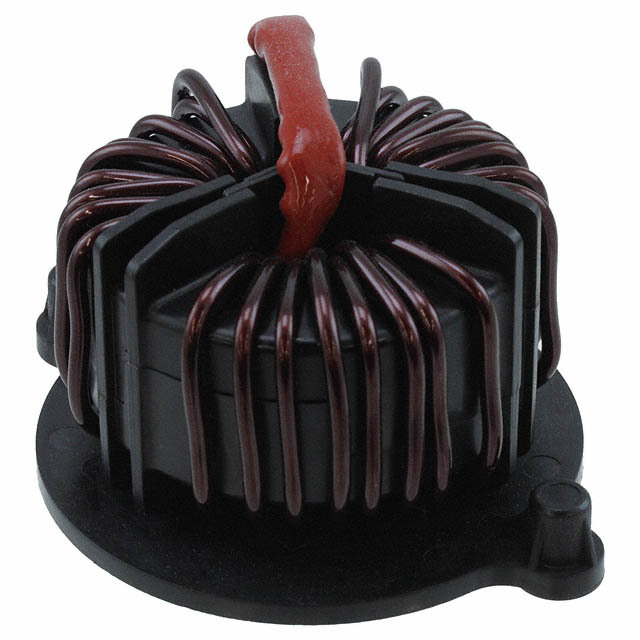

RD8137-64-0M5 TE Connectivity – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

RD8137-64-0M5

Part No RD8137-64-0M5
Manufacturer TE Connectivity
Catalog Common Mode Chokes
Description CMC 500UH 64A 3LN TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Filter Type Power Line
Number of Lines 3
Inductance @ Frequency 500 µH @ 1 kHz
Current Rating (Max) 64A (Typ)
DC Resistance (DCR) (Max) 1.35mOhm (Typ)
Voltage Rating - DC 850V
Voltage Rating - AC 600V
Temperature Range - Operating -25°C ~ 110°C
Mounting Type Through Hole
Size / Dimension 3.150" L x 3.150" W (80.00mm x 80.00mm)
Height (Max) 1.988" (50.50mm)
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1530595-RD8137-64-0M5
Ultra Librarian 3D Model Ultra Librarian RD8137-64-0M5 CAD Model

Description

N
