Part No 9-1393480-9
Manufacturer TE Connectivity
Catalog D - Sub Connectors

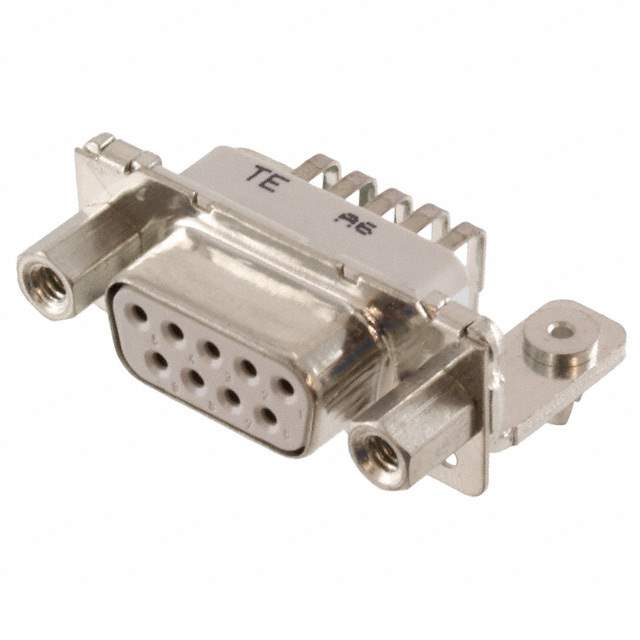

Description CONN D-SUB RCPT 9POS R/A SLDR  /  9 Position D-Sub Receptacle, Female Sockets Connector
Datasheet
9-1393480-9 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HD-20
Package Bulk
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 2.2A
Backset Spacing 0.371" (9.43mm)
Features Board Lock
Color Black
Dielectric Material Polybutylene Terephthalate (PBT), Polyester
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 125°C
Base Product Number 1393480
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 2266-9-1393480-9,-V23529B1225B209-SI,-9-1393480-9-SI,-V23529B1225B209-SI-ND,A104889,913934809
Standard Package 100
Win Source Part Number 1047350-9-1393480-9
Ultra Librarian 3D Model Ultra Librarian 9-1393480-9 CAD Model

Description

The AMPLIMITE HD-20 series D-sub connector is a receptacle type connector with female sockets.

  • Positions: 9
  • Rows: 2
  • Color: Black
  • Feature: Board Lock
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Shell Material: Steel
  • Shell Plating: Tin
  • Flange Feature: Mating Side with Female Screw Lock (4-40)
  • Dielectric Material: Polybutylene Terephthalate (PBT), Polyester
  • Connector Style: D-sub
  • Shell Size: 1 (DE, E)
  • Mounting Type: Through Hole, Right-Angled
  • Operating Temperature: -55°C ~ 125°C
  • Current Rating: 2.2A
  • Backset Spacing: 0.371" (9.43mm)
  • ECCN: EAR99
  • REACH: Affected
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.4040
