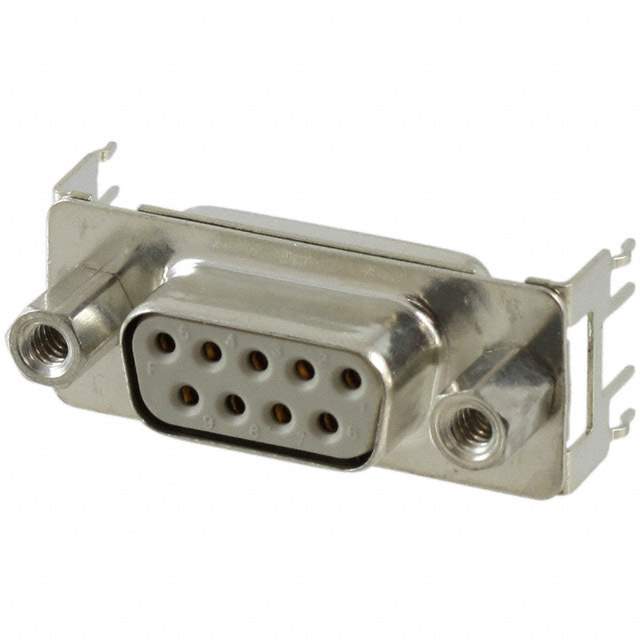

7-1393740-0 Real Image
Same model may have multiple batches, images only for reference.

7-1393740-0

Part No 7-1393740-0
Manufacturer TE Connectivity
Catalog D - Sub Connectors
Description CONN D-SUB RCPT 9POS VERT SLDR / 9 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HD-20
Package Tray
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Mounting Type Through Hole
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Material Flammability Rating UL94 V-0
Features Ground Strap
Color Gray
Dielectric Material Polybutylene Terephthalate (PBT), Polyester
Contact Material Phosphor Bronze
Base Product Number 1393740
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names 713937400,2266-7-1393740-0
Standard Package 70
Win Source Part Number 1039834-7-1393740-0
Ultra Librarian 3D Model Ultra Librarian 7-1393740-0 CAD Model

Description

TE Connectivity AMP Connectors 1393740 is a D-Sub connector that is used for various purposes.

  • Series: AMPLIMITE HD-20
  • Positions: 9
  • Color: Gray
  • Ground Strap: Yes
  • Receptacle: Yes
  • Sockets: Female
  • Contact Type: Signal
  • Rows: 2
  • Termination: Solder
  • Contact Finish: Gold
  • Package: Tray
  • Contact Material: Phosphor Bronze
  • Connector Style: D-Sub
  • Material: Steel
  • Plating: Tin
  • Dielectric Material: Polybutylene Terephthalate (PBT), Polyester
  • Shell Size: 1 (DE, E)
  • Mounting Type: Through-Hole
