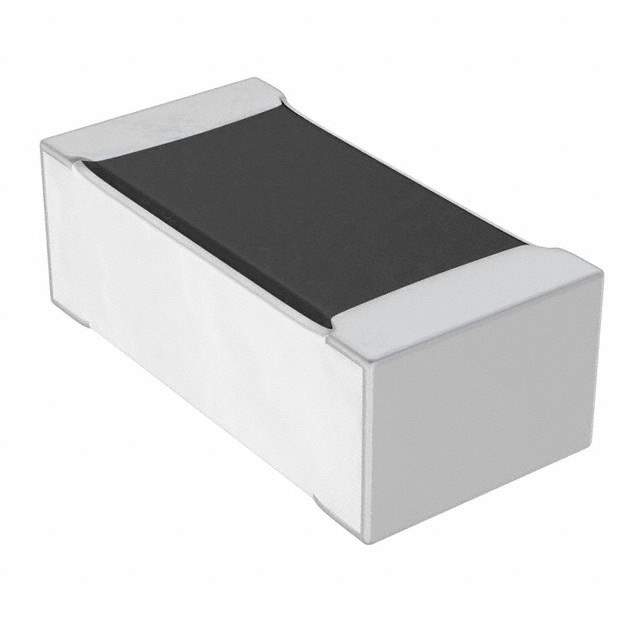

The CPF0402B75KE1 is a surface mount chip resistor manufactured by TE Connectivity. This component is designed for precision current limiting and voltage division in electronic circuits. The '0402' designation indicates the physical size of the resistor, which is 0.04 inches by 0.02 inches (approximately 1.0mm x 0.5mm). The 'B' likely indicates the tolerance rating, '75K' represents the resistance value of 75 kilo-ohms, and 'E1' likely designates the temperature coefficient and packaging.

Applications:

• Consumer Electronics: Used in smartphones, tablets, and other consumer devices for current limiting and voltage division.
• Industrial Equipment: Provides precise resistance in industrial control systems, instrumentation, and power supplies.
• Medical Devices: Used in medical equipment where reliable and accurate resistance is required.
• Automotive Electronics: Implemented in automotive control units and sensors for accurate signal processing.
• Telecommunications Equipment: Used in communication devices for signal attenuation and impedance matching.

Features:

• Surface Mount Technology (SMT): Designed for automated assembly using surface mount techniques.
• Small Size: Compact 0402 package minimizes board space requirements.
• High Precision: Offers a tight tolerance (likely 0.1% or 0.5% based on typical 'B' designation) for accurate resistance values.
• Stable Performance: Provides stable resistance over a wide range of temperatures and operating conditions.
• RoHS Compliant: Complies with Restriction of Hazardous Substances (RoHS) directive, making it environmentally friendly.

Benefits:

• Precise Current Limiting: Ensures accurate current control in electronic circuits.
• Accurate Voltage Division: Provides precise voltage division for signal conditioning and measurement.
• Space Saving: Compact size allows for high-density circuit designs.
• Reliable Performance: Offers stable and consistent performance over time.
• Environmentally Friendly: RoHS compliance ensures minimal environmental impact.

Additional Details: The CPF0402B75KE1 typically has a power rating of 1/16W (0.0625W). The operating temperature range is generally from -55°C to +155°C. The temperature coefficient of resistance (TCR) is likely low, contributing to the stability of the resistance value over temperature. The resistor is constructed using a thin film resistive element and is typically available in tape and reel packaging for automated assembly. Proper soldering techniques should be used to ensure reliable electrical connections.
