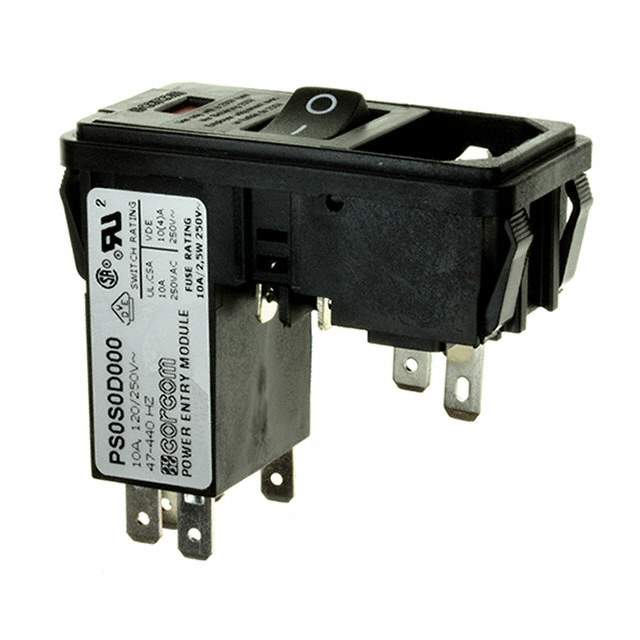

PS0S0D000 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Power Entry Connectors - Inlets, Outlets, Modules
Mfr TE Connectivity Corcom Filters
Series P, Chameleon, Corcom
Package Bulk
Connector Style IEC 320-C14
Connector Type Receptacle, Male Blades - Module
Current - IEC 10A
Voltage - IEC 120VAC
Current - UL 10A
Voltage - UL 250VAC
Filter Type Unfiltered - Commercial
Accomodates a Fuse Yes (Fuse Not Included)
Number of Positions 3
Mounting Type Panel Mount, Snap-In
Termination Quick Connect - 0.187" (4.7mm)
Switch Features Switch On-Off
Fuse Holder, Drawer Fuse Holder, Twin Fused
Panel Cutout Dimensions Variable Size
Panel Thickness 0.031" ~ 0.083" (0.79mm ~ 2.11mm)
Approval Agency CSA, UL, VDE
Base Product Number PS0S
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8537.10.9170
Other Names CCM1718,-PS0S0D000-SI,6609101-8,-PS0S0D000-LSI,CCM1718-NDR,1609101-8,PS0S0D000-ND
Standard Package 16
Win Source Part Number 1179130-PS0S0D000
Ultra Librarian 3D Model Ultra Librarian PS0S0D000 CAD Model

Description

The TE Connectivity Corcom Filters 1179130-PS0S0D000 is a power entry connector that is designed for various electronic applications.

  • Current: 10A
  • Voltage: 120VAC
  • Standard Package: 16
  • Packaging: Bulk
  • Filter Type: Unfiltered - Commercial
  • Switch Features: Switch On-Off
  • Panel Cutout Dimensions: Variable Size
  • Panel Thickness: 0.031" ~ 0.083" (0.79mm ~ 2.11mm)
  • ECCN: EAR99
  • HTSUS: 8537.10.9170
