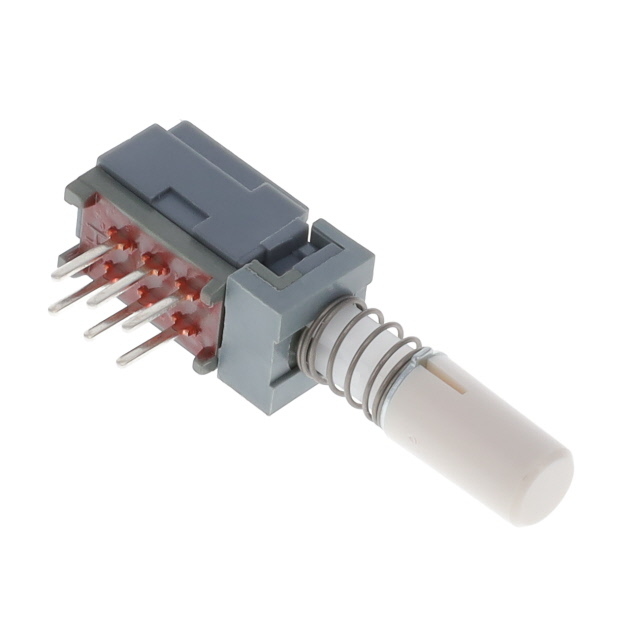

Same model may have multiple batches, images only for reference.
PMS8P1B09M2RE TE Connectivity – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PMS8P1B09M2RE

Part No PMS8P1B09M2RE
Manufacturer TE Connectivity
Catalog Pushbutton Switches
Description SWITCH PUSHBUTTON SPDT 0.4VA 20V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting Type Panel Mount, Rear
Type Standard
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Round, Plunger
Actuator Marking No Marking
Color - Actuator/Cap Black
Termination Style PC Pin
Features Sealed
Panel Cutout Dimensions Circular - 6.35mm Dia
Temperature Range - Operating -30°C ~ 85°C
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1557420-PMS8P1B09M2RE
Ultra Librarian 3D Model Ultra Librarian PMS8P1B09M2RE CAD Model
