Same model may have multiple batches, images only for reference.

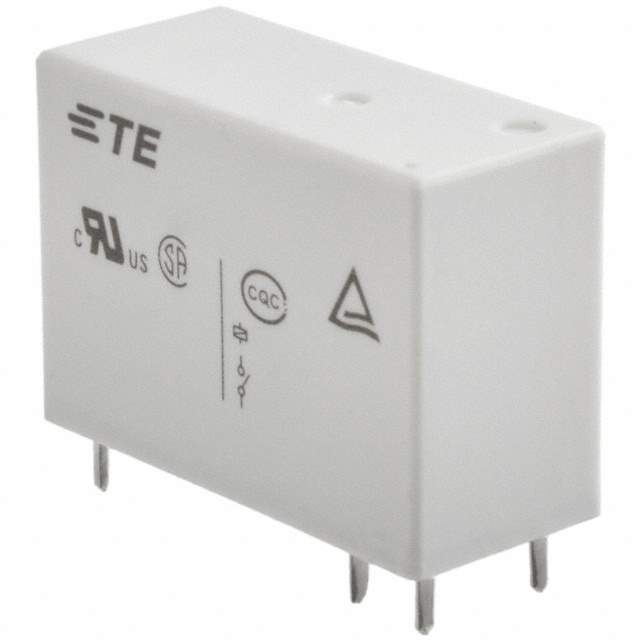

OZ-SS-148L Real Image
Same model may have multiple batches, images only for reference.

OZ-SS-148L

Part No OZ-SS-148L
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 48V
Datasheet
OZ-SS-148L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 10.9mA
Coil Voltage 48VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16A
Switching Voltage 240VAC, 24VDC - Max
Turn On Voltage (Max) 36 VDC
Turn Off Voltage (Min) 2.4 VDC
Operate Time 20ms
Release Time 8ms
Features Insulation - Class A, Sealed - Flux Protection
Mounting Through Hole
Termination Style PC Pin
Coil Power 540 mW
Coil Resistance 4.4 kOhms
Temperature Range - Operating -30°C to 70°C
Win Source Part Number 265081-OZ-SS-148L
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian OZ-SS-148L CAD Model

Description

TE Connectivity Potter & Brumfield Relays' 265081-OZ-SS-148L is a limited supply electronic component with medium popularity.

  • Contact Rating: 16A
  • Switching Voltage: 240VAC and 24VDC - Max
  • Coil Voltage: 48VDC
  • Coil Resistance: 4.4 kOhms
  • Temperature Range: -30°C to 70°C
  • Operate Time: 20ms
  • Release Time: 8ms
