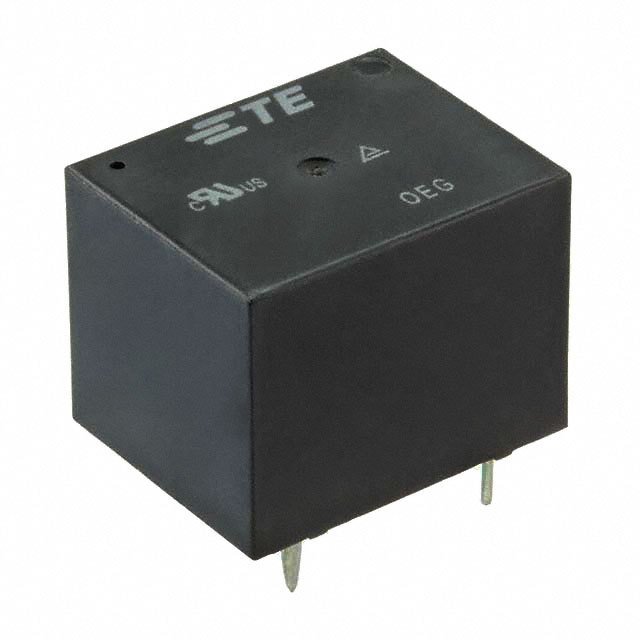

Same model may have multiple batches, images only for reference.
ORWH-SH-124DM1F,000 TE Connectivity
Same model may have multiple batches, images only for reference.

ORWH-SH-124DM1F,000

Part No ORWH-SH-124DM1F,000
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 10A 24V
Datasheet
ORWH-SH-124DM1F,000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Obsolete(EOL)
Relay Type General Purpose
Coil Type Non Latching
Coil Current 15mA
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10A
Switching Voltage 277VAC, 28VDC - Max
Turn On Voltage (Max) 16.8 VDC
Turn Off Voltage (Min) 2.4 VDC
Operate Time 10ms
Release Time 5ms
Features Insulation - Class F, Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 360 mW
Coil Resistance 1.6 kOhms
Temperature Range - Operating -30°C to 70°C
Win Source Part Number 132481-ORWH-SH-124DM1F,000
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ORWH-SH-124DM1F,000 CAD Model

Description

The Potter & Brumfield Relay with Id 271404 from TE Connectivity is a general-purpose relay that is ideal for electronic applications that require high-performance and accuracy.

  • Mounting: through-hole
  • Termination: PC pin
  • Coil Voltage: 24VDC
  • Contact Rating: 10A
  • Insulation: class F
  • Seal: fully sealed
  • Supply and Demand Status: balanced
  • Status: obsolete product with an EOL status
  • Temperature Range: -30°C to 70°C
