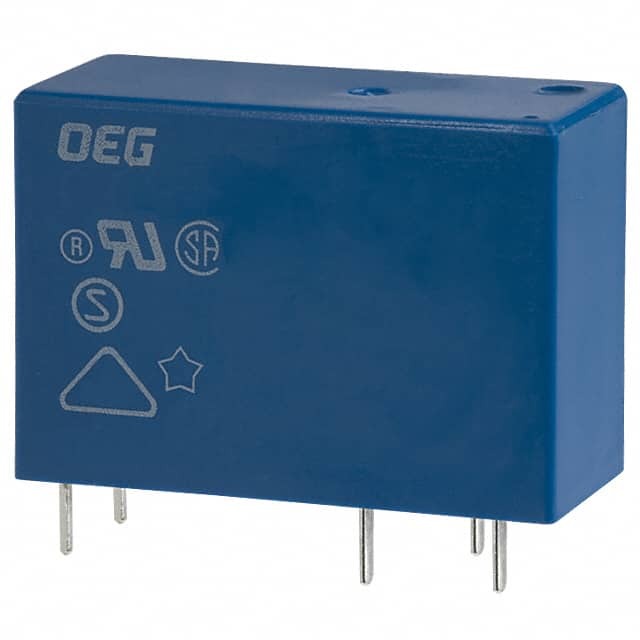

The OMIH-SH-124LM,394 is a power relay from the OMIH series of OEG.

• Product Name: OMIH-SH-124LM,394
• Series: OMIH
• Manufacturer: OEG
• Termination Style: PC pin
• Contact Form: SPST-NO (1 Form A)
• Contact Material: Silver tin oxide (AgSnO)
• Coil Resistance: 1.1 kOhms
• Coil Voltage: 24VDC
• Contact Rating (Current): 16 A
• Switching Voltage: 250VAC and 30VDC maximum
• Relay Type: General purpose
• Coil Type: Non-latching
• Operate Time: 20 ms
• Release Time: 8 ms
• Seal Rating: Fully sealed
• Mounting Type: Through hole
• Operating Temperature Range: -30°C to 70°C
• Must Operate Voltage: 18 VDC
• Must Release Voltage: 1.2 VDC
• Status: Last time buy product from TE Connectivity Potter & Brumfield Relays
