Same model may have multiple batches, images only for reference.

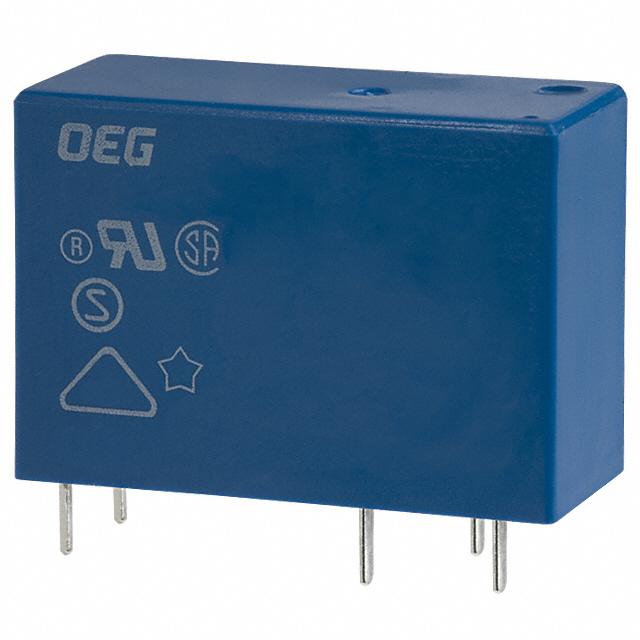

OMI-SH-212L,594 TE Connectivity
Same model may have multiple batches, images only for reference.

OMI-SH-212L,594

Part No OMI-SH-212L,594
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 5A 12V
Datasheet
OMI-SH-212L,594 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Obsolete(EOL)
Relay Type General Purpose
Coil Type Non Latching
Coil Current 45mA
Coil Voltage 12VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 5A
Switching Voltage 250VAC, 30VDC - Max
Turn On Voltage (Max) 9 VDC
Turn Off Voltage (Min) 0.6 VDC
Operate Time 20ms
Release Time 8ms
Features Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 540 mW
Coil Resistance 270 Ohms
Temperature Range - Operating -30°C to 70°C
Win Source Part Number 130680-OMI-SH-212L,594
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian OMI-SH-212L,594 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays 130680-OMI-SH-212L,594 is a general-purpose relay that has a DPDT contact form.

  • Coil Voltage: 12VDC
  • Coil Resistance: 270 Ohms
  • Mounting Style: Through-Hole
  • Switching Voltage: 250VAC, 30VDC - Max
  • Operate Time: 20ms
  • Release Time: 8ms
