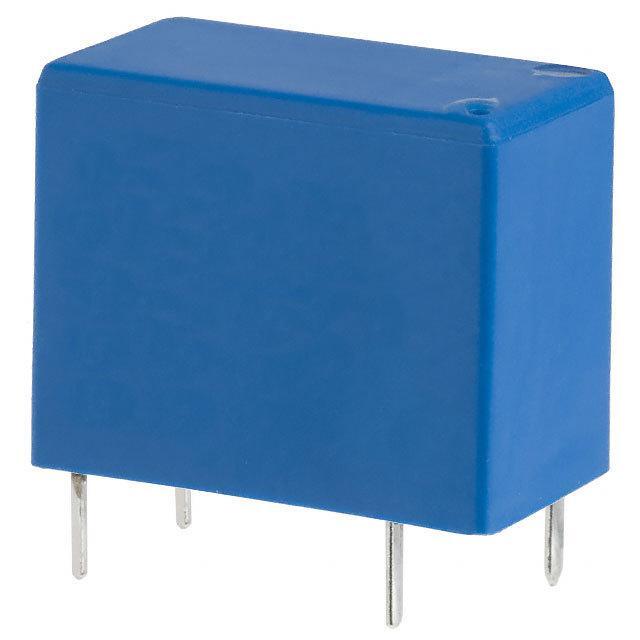

OJE-SS-112HMF TE Connectivity
Same model may have multiple batches, images only for reference.

OJE-SS-112HMF

Part No OJE-SS-112HMF
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 10A 12V
Datasheet
OJE-SS-112HMF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Bulk
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 37.5mA
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10A
Switching Voltage 277VAC, 30VDC - Max
Turn On Voltage (Max) 8.4 VDC
Turn Off Voltage (Min) 0.6 VDC
Operate Time 10ms
Release Time 4ms
Features Insulation - Class F, Sealed - Flux Protection
Mounting Through Hole
Termination Style PC Pin
Coil Power 450 mW
Coil Resistance 320 Ohms
Temperature Range - Operating -30°C to 70°C
Win Source Part Number 209404-OJE-SS-112HMF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian OJE-SS-112HMF CAD Model

Description

This TE Connectivity Potter & Brumfield Relay is a high-quality general purpose relay with a SPST-NO (1 Form A) contact form.

  • Coil Type: Non-Latching
  • Coil Voltage: 12VDC
  • Coil Resistance: 320 Ohms
  • Contact Rating: 10A
  • Switching Voltage: 277VAC and 30VDC
  • Protection Feature: Sealed-flux
  • Insulation Class: F
  • Operate Time: 10ms
  • Release Time: 4ms
  • Turn-On Voltage: 8.4VDC
  • Turn-Off Voltage: 0.6VDC
  • Mounting: Through-hole
  • Packaging: Bulk
