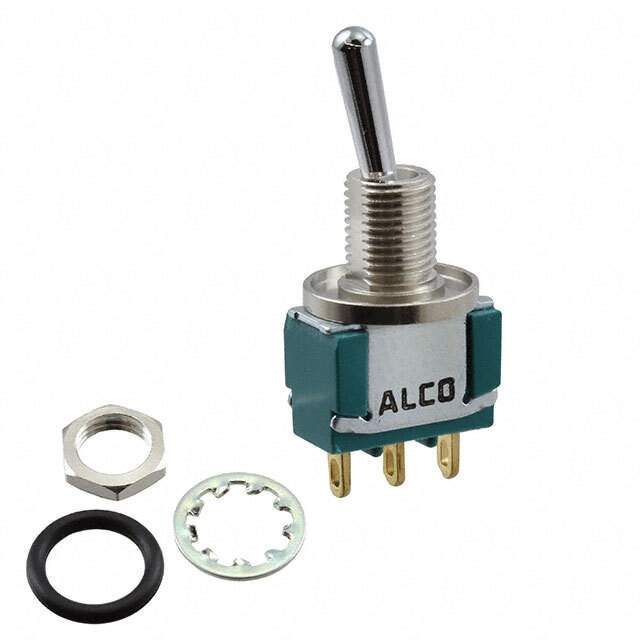

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Toggle Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series MTE Green
Package Bulk
Mounting Type Panel Mount
Circuit SPDT
Switch Function On-On
Current Rating (Amps) 6A (AC), 4A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 28 V
Actuator Type Standard Round
Actuator Length 10.49mm
Illumination Non-Illuminated
Termination Style Solder Lug
Panel Cutout Dimensions Circular - 6.40mm Dia
Bushing Thread 1/4-40
Features Epoxy Sealed Terminals
Temperature Range - Operating -20°C ~ 80°C
Actuator Material Copper Alloy, Chrome Plated
Electrical Life 80,000 Cycles
Base Product Number MTE106
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9065
Other Names -MTE106D-SI,450-1309,6-1437558-8
Standard Package 25
Win Source Part Number 975247-MTE106D
Ultra Librarian 3D Model Ultra Librarian MTE106D CAD Model

Description

The TE Connectivity ALCOSWITCH Switches 975247-MTE106D is a toggle switch from the MTE Green series.

  • Circuit: SPDT
  • Switch Function: On-On
  • Current Rating: 6A (AC), 4A (DC)
  • Electrical Life: 80,000 cycles
  • Mounting: Panel Mount
  • Bushing Thread: 1/4-40
  • Voltage Rating: 125 V (AC), 28 V (DC)
