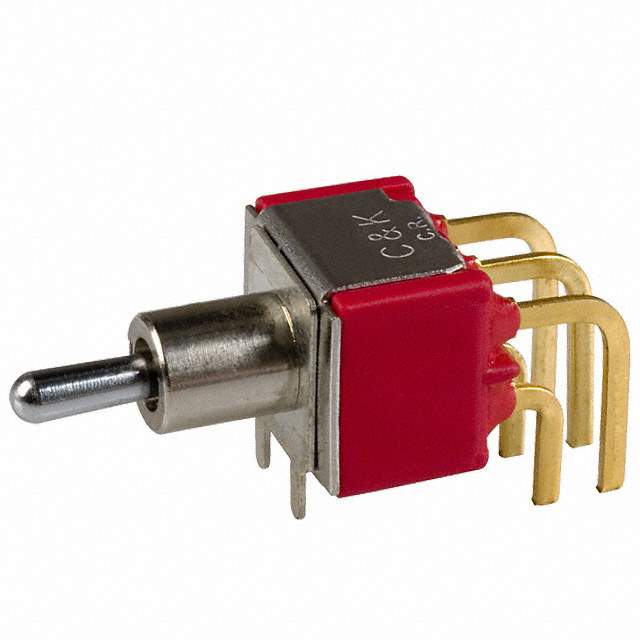

7201MD9ABE Real Image
Same model may have multiple batches, images only for reference.

7201MD9ABE

Part No 7201MD9ABE
Manufacturer C&K Components
Catalog Toggle Switches
Description SWITCH TOGGLE DPDT 0.4VA 20V / Toggle Switch DPDT Through Hole, Right Angle
Datasheet
7201MD9ABE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Toggle Switches
Mfr C&K
Series 7000
Package Tray
Mounting Type Through Hole, Right Angle
Circuit DPDT
Switch Function On-On
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Standard Round
Actuator Length 6.86mm
Illumination Non-Illuminated
Termination Style PC Pin
Bushing Thread Unthreaded
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Brass, Chrome Plated
Electrical Life 100,000 Cycles
Base Product Number 7201
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9065
Other Names CCM012503LFTT25,*7201MD9ABE,CKN1055
Standard Package 80
Win Source Part Number 1192309-7201MD9ABE
Ultra Librarian 3D Model Ultra Librarian 7201MD9ABE CAD Model

Description

The C&K 7201MD9ABE is a DPDT toggle switch from the 7000 series by C&K.

  • Switch Type: DPDT Toggle
  • Series: 7000
  • Actuator: Standard Round, Brass, Chrome Plated
  • Electrical Life: 100,000 Cycles
  • Illumination: No
  • Mounting: Through-Hole, Right-Angle
  • Temperature Range: -30°C to 85°C
  • REACH: Affected
  • ECCN: EAR99
  • Win Source Part Number: 1192309-7201MD9ABE
