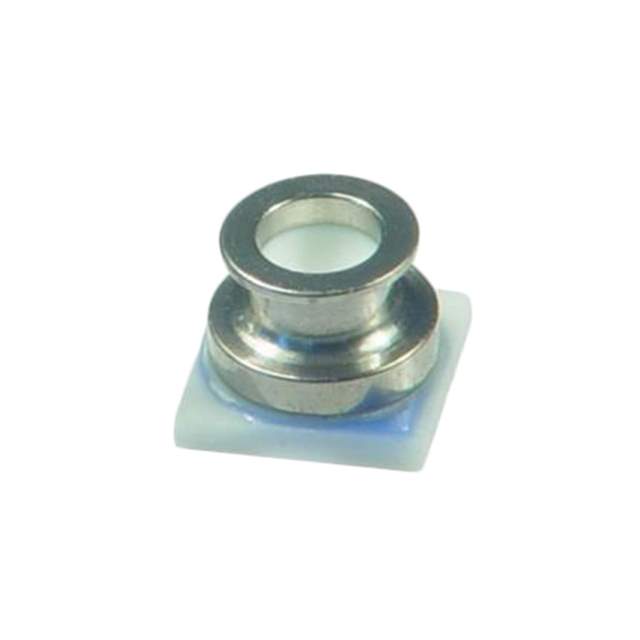

The MS5837-02BA06 is an ultra-small, gel-filled pressure sensor from TE Connectivity. It is optimized for depth measurement systems, including diving computers and depth loggers. This sensor is robust and designed for harsh environments.

Applications:

• Diving computers
• Depth loggers
• Underwater vehicles (ROVs, AUVs)
• Water level measurement
• Wearable devices for water sports

Features:

• High resolution module: 2 mm
• Fast conversion down to 0.5 ms
• Low power consumption: 0.6 μA (standby < 0.15 μA)
• Integrated digital pressure sensor (24 bit ΔΣ ADC)
• Supply voltage: 1.5 V to 3.6 V
• Operating temperature: -20°C to +85°C
• I2C interface
• Gel-filled for water resistance
• Ceramic-metal package

Benefits:

• Accurate depth measurements: Provides high-resolution depth information.
• Low power consumption: Suitable for battery-powered underwater devices.
• Small size: Enables integration into compact designs.
• Robust design: Withstands harsh underwater environments.
• Easy to use: Communicates via a standard I2C interface.

The MS5837-02BA06 integrates a pressure sensor and a signal conditioning IC in a small package. The sensor converts pressure to an analog voltage, which is digitized by a 24-bit delta-sigma ADC. The digitized values are then available through the I2C interface. The gel filling protects the sensor from water damage and corrosion, making it reliable for long-term underwater use. The sensor also incorporates temperature compensation for accurate measurements across a range of temperatures.

Its resilience and accurate performance make the MS5837-02BA06 an ideal choice for applications requiring precise depth sensing in challenging underwater conditions.
